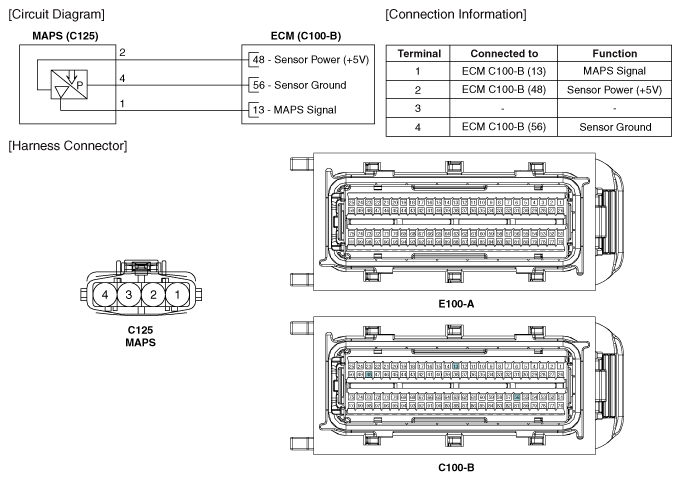

Home >> Hyundai >> 2016 >> Santa Fe XL Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Manifold Absolute Pressure Sensor - MAPS >> Schematic Diagrams >> Circuit Diagram
