Components and Components Location: Components

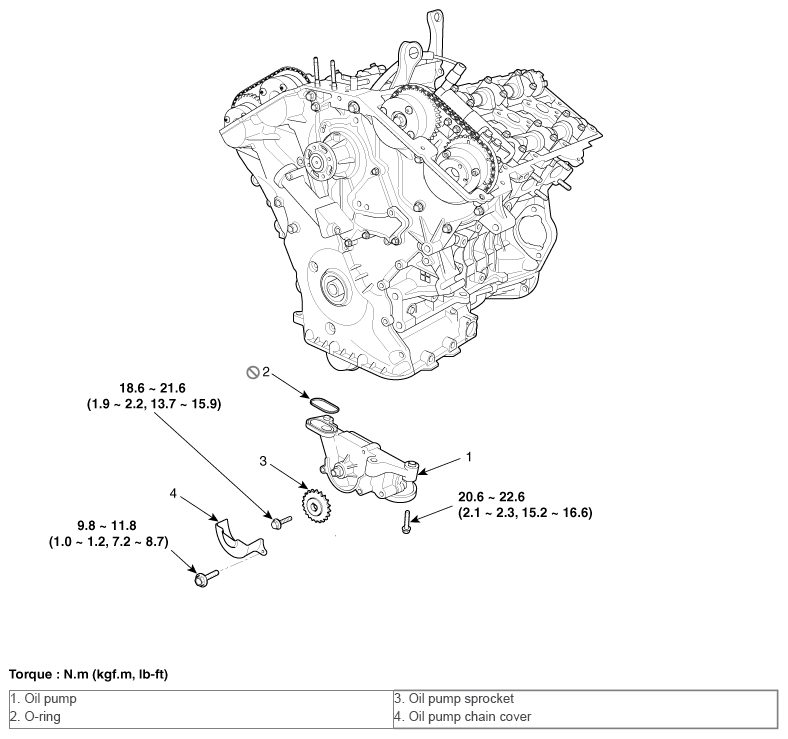

Fig 1: Oil Pump Components With Torque Specifications

G10574637

Courtesy of HYUNDAI MOTOR AMERICA
