Home >> Hyundai >> 2016 >> Santa Fe XL Limited >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pressure Switch >> Components and Components Location >> Components

Components and Components Location: Components

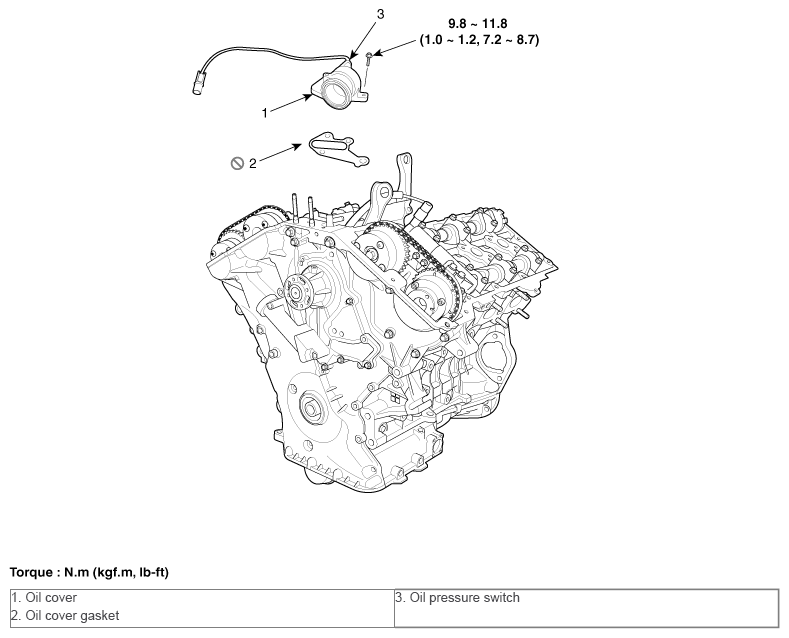

Fig 1: Oil Pressure Switch Components With Torque Specifications

G10574641

Courtesy of HYUNDAI MOTOR AMERICA
