Liftgate Switch

  1. Check for continuity between the liftgate latch terminals.

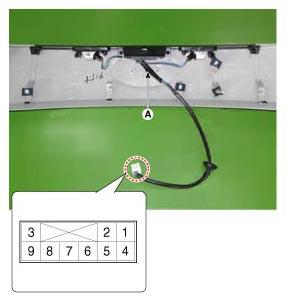

    Fig 1: Liftgate Latch Connector Terminals
    G10576652Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    Fig 2: Liftgate Latch Continuity Chart
    G10576653Courtesy of HYUNDAI MOTOR AMERICA
