Pressure Sensor Inspection Procedure
Pressure Sensor Inspection Procedure
WARNING:
This page is about a different variant/trim than selected.

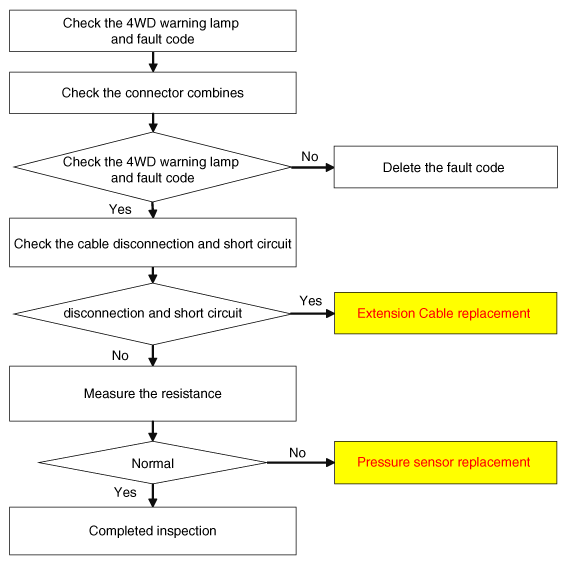

Fig 1: Pressure Sensor Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
