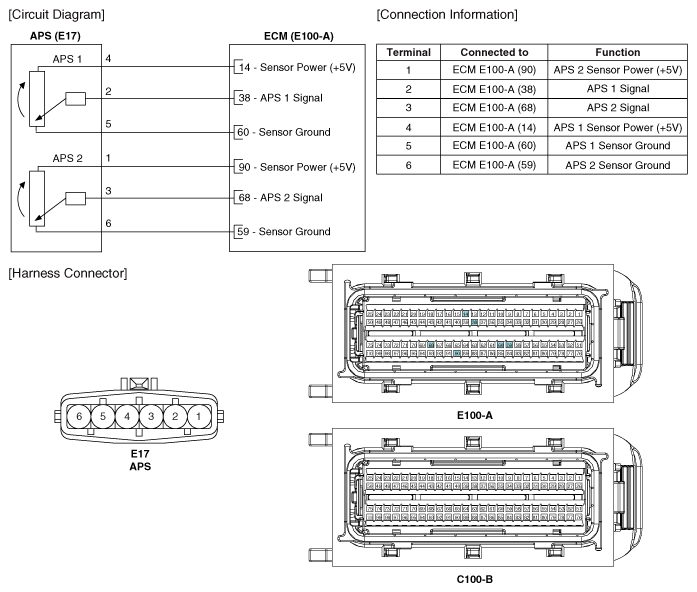

Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Accelerator Position Sensor - APS >> Schematic Diagrams >> Circuit Diagram
