Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Piston And Connecting Rod >> Components And Components Location >> Components

Components And Components Location: Components

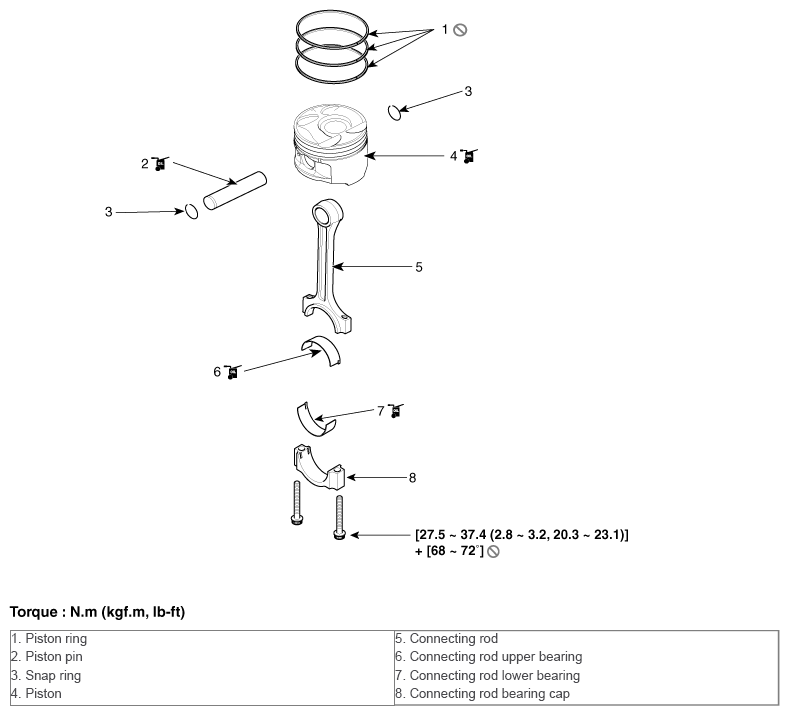

Fig 1: Piston And Connecting Rod Components With Torque Specifications

G10574517

Courtesy of HYUNDAI MOTOR AMERICA
