Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Drive Plate >> Components And Components Location >> Components

Components And Components Location: Components

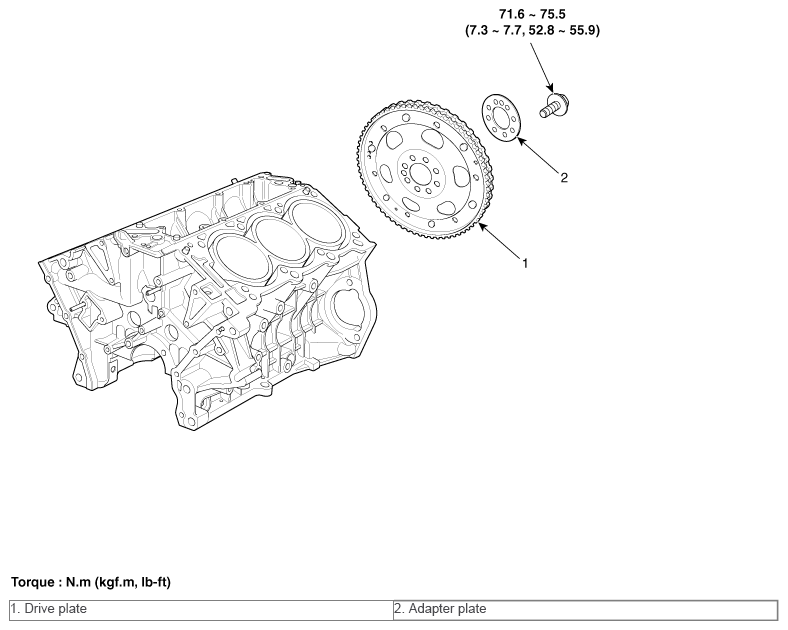

Fig 1: Drive Plate Components With Torque Specifications

G10574512

Courtesy of HYUNDAI MOTOR AMERICA
