Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub/Knuckle/Tone Wheel >> Components and Components Location >> Components

Components and Components Location: Components

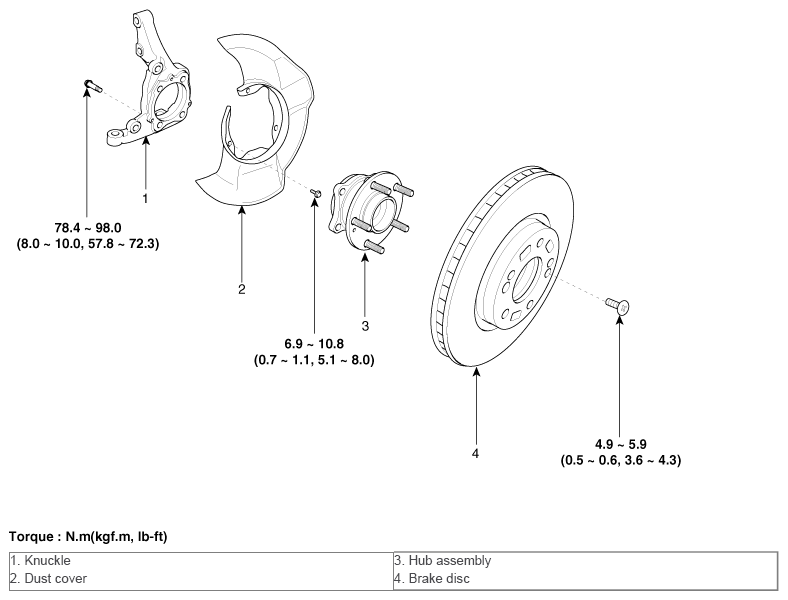

Fig 1: Front Hub, Knuckle And Tone Wheel Components With Torque Specifications

G10575322

Courtesy of HYUNDAI MOTOR AMERICA
