Driver Power Window Switch

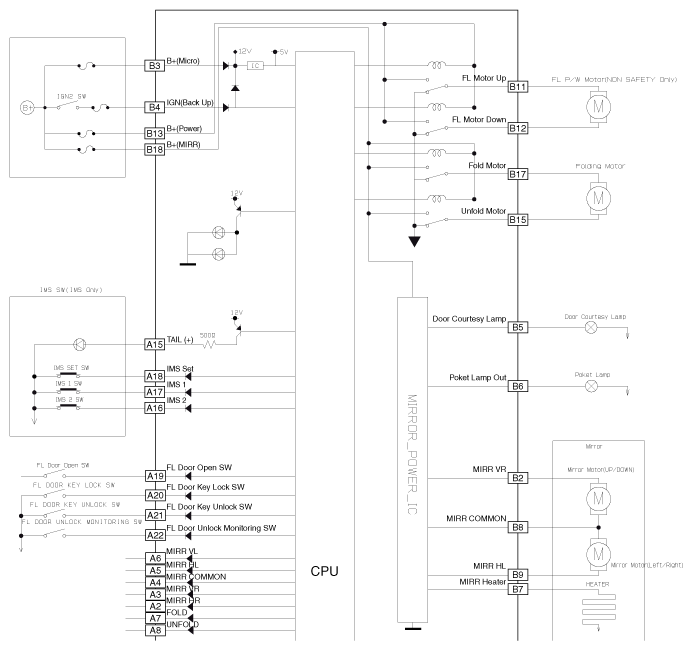

Fig 1: Driver Power Window Switch Circuit Diagram (1 Of 2)
G10576920Courtesy of HYUNDAI MOTOR AMERICA

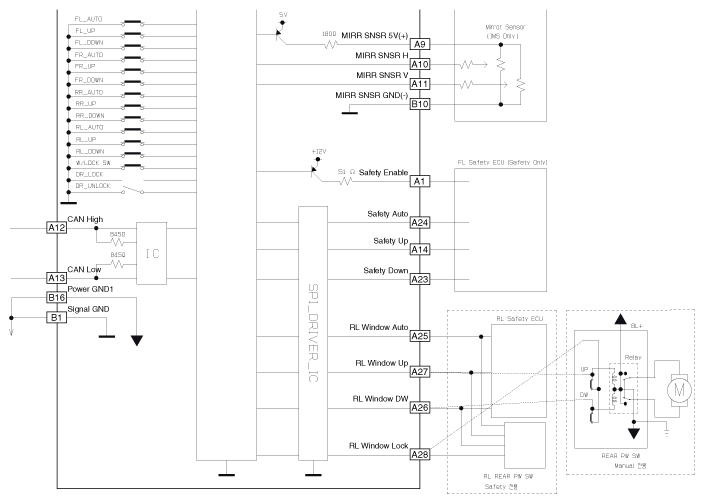

Fig 2: Driver Power Window Switch Circuit Diagram (2 Of 2)
G10576921Courtesy of HYUNDAI MOTOR AMERICA
