Components Location

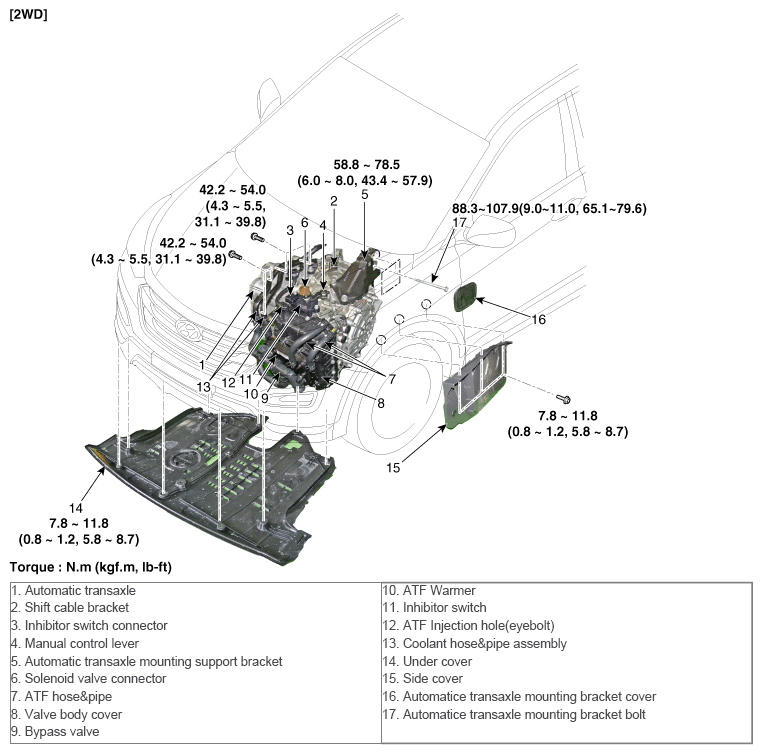

Fig 1: Identifying Automatic Transaxle Related Components (1 Of 2)
G10587753Courtesy of HYUNDAI MOTOR AMERICA

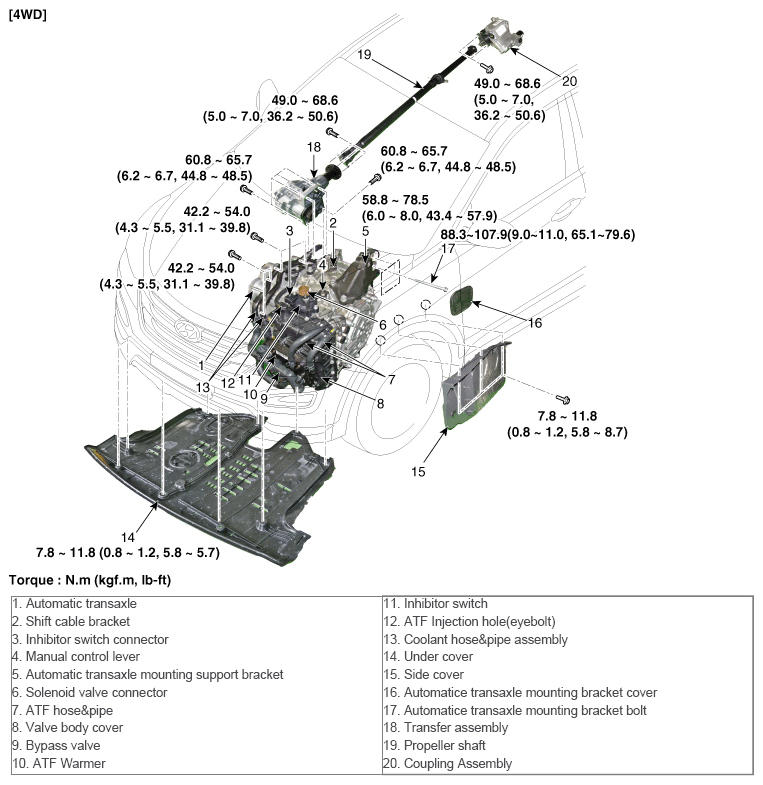

Fig 2: Identifying Automatic Transaxle Related Components (2 Of 2)
G10587754Courtesy of HYUNDAI MOTOR AMERICA
