Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
Information
If you have trouble code related to the pressure sensor check pressure sensor according to the inspection process.

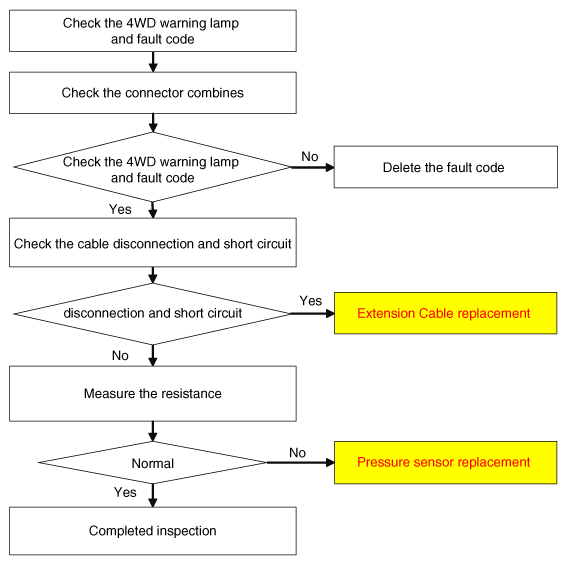

Pressure Sensor Inspection Procedure
Measure the resistance of pressure sensor
- Turn ignition switch OFF.
- Disconnect the pressure sensor connector.
- Measure resistance between sensor terminal and terminal.
- Check the measured resistance. (Refer to: Chart).
| Terminal | Resistance |
|---|---|
| PIN 2 - PIN 3 | 2.755 ~ 4.133 kΩ |
| PIN 1 - PIN 3 | 1.892 ~ 2.838 kΩ |
| PIN 1 - PIN 2 | 1.714 ~ 2.838 kΩ |
