Charging System: Battery: Troubleshooting

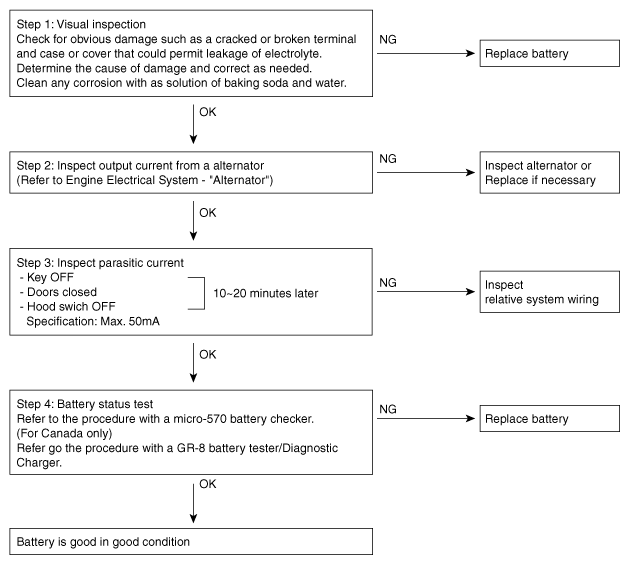

Fig 1: Charging System Troubleshooting Chart

G10582602

Courtesy of HYUNDAI MOTOR AMERICA
