Components and Components Location: Component

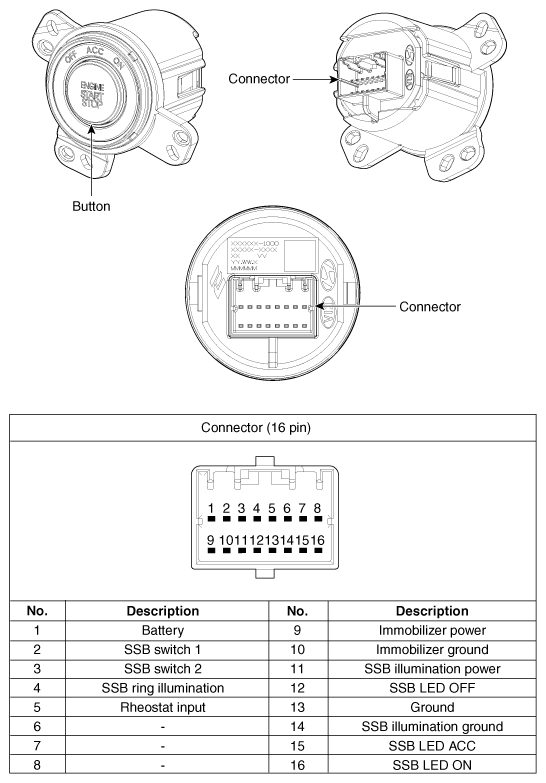

Fig 1: Start/Stop Button Connector Terminals And Description

G10585032

Courtesy of HYUNDAI MOTOR AMERICA
