Home >> Hyundai >> 2016 >> Santa Fe Sport Base, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing System >> Components and Components Location >> Components

Components and Components Location: Components

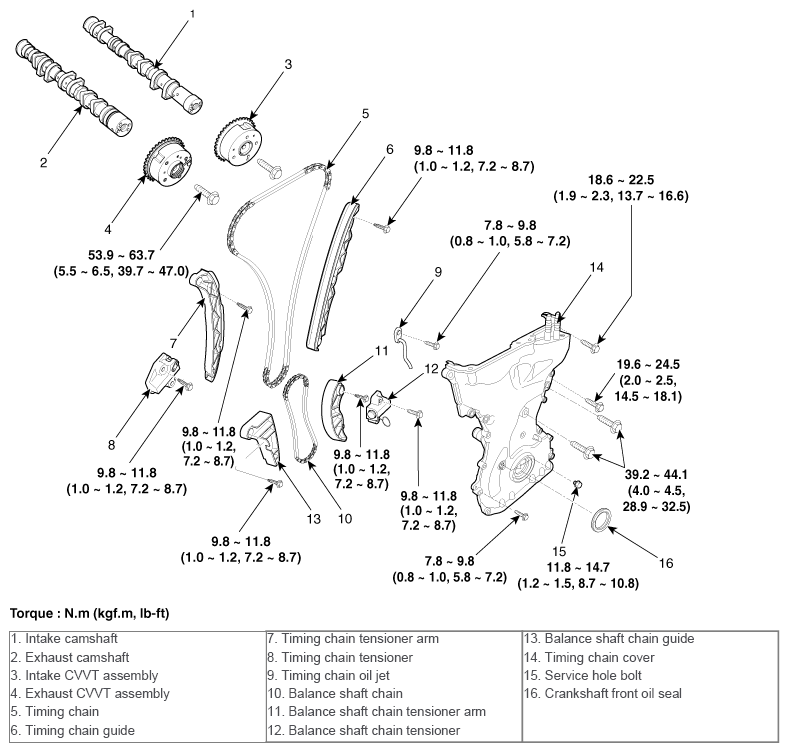

Fig 1: Engine Timing System Replacement Components With Torque Specifications
G10582256Courtesy of HYUNDAI MOTOR AMERICA
