Repair procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

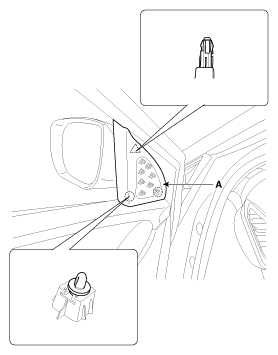

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Fig 1: Removing Front Door Quadrant Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the outside rear view mirror connector (B).
After loosening the mounting nuts, then remove the outside rear view mirror (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 2: Removing Outside Rear View Mirror
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
