FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

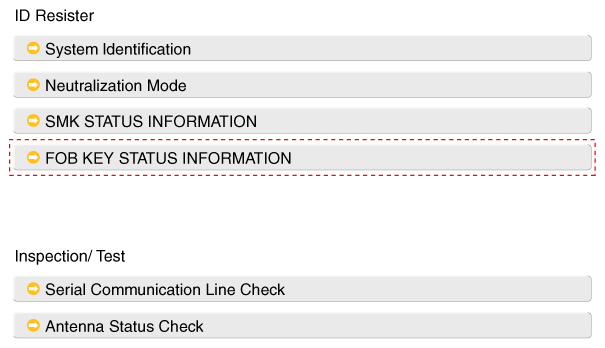

Fig 1: Screen Display - ID Register
G10584479Courtesy of HYUNDAI MOTOR AMERICA

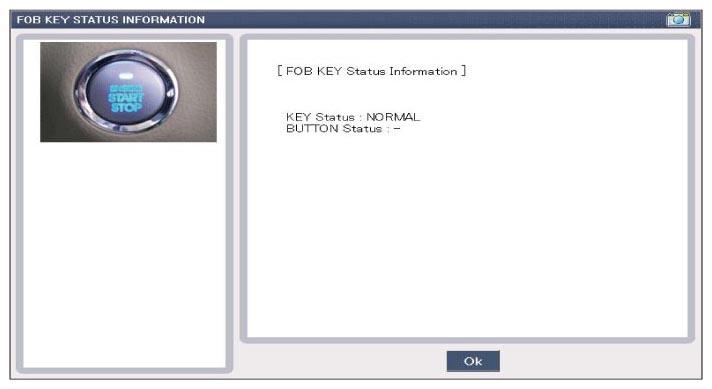

Fig 2: Screen Display - Fob Key Status Information
G10584480Courtesy of HYUNDAI MOTOR AMERICA
