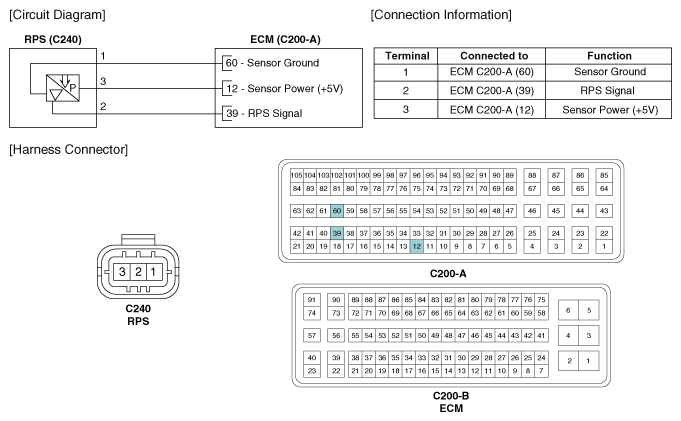

Home >> Hyundai >> 2016 >> Santa Fe Sport 2.0T, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram
