Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the liftgate trim and Luggage side trim.
(Refer to: Body - "Liftgate")
Disconnect the Power PLG Spindle connector (A).

Fig 1: Disconnecting Power PLG Spindle Connector
Courtesy of HYUNDAI MOTOR AMERICA

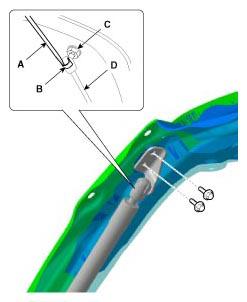

Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the PLG spindle from the bracket (C).
CAUTION: Take care not to be closed the liftgate, when removing the lift.

Fig 2: Removing PLG Spindle
Courtesy of HYUNDAI MOTOR AMERICA
If it is necessary, remove the nuts and replace the PLG spindle bracket (A).
Tightening Torque:

6.9 ~ 10.8N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 3: Removing PLG Spindle Bracket Nuts
Courtesy of HYUNDAI MOTOR AMERICA
