Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

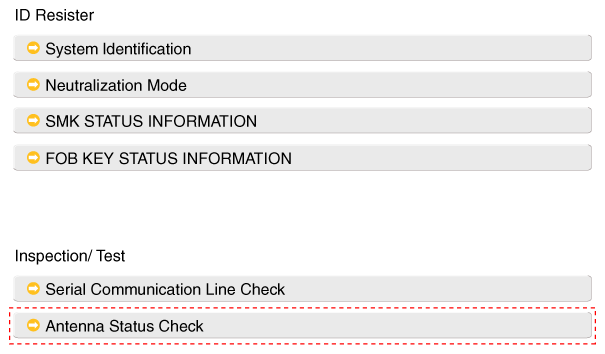

Fig 1: Screen Display - ID Register
Courtesy of HYUNDAI MOTOR AMERICA
After IG ON, select the "Antenna Status Check".

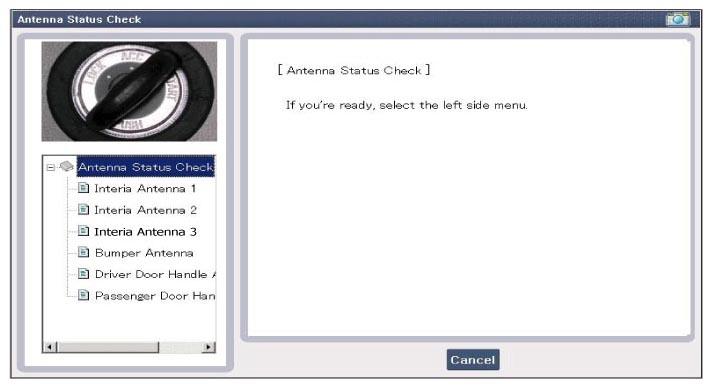

Fig 2: Screen Display - Antenna Status Check
Courtesy of HYUNDAI MOTOR AMERICA
Set the SMART KEY near the related antenna and operate it with a GDS.

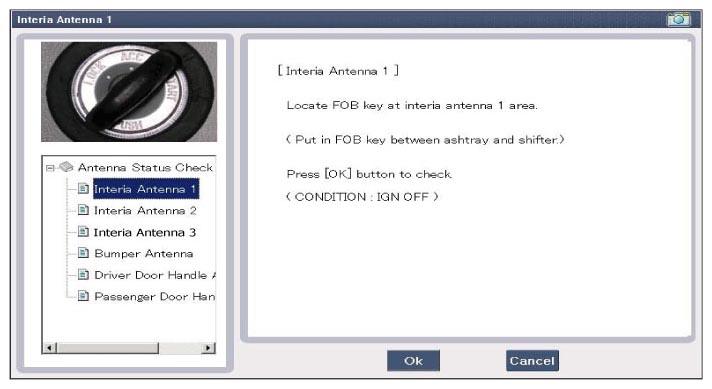

Fig 3: Screen Display - Interior 1 Antenna (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

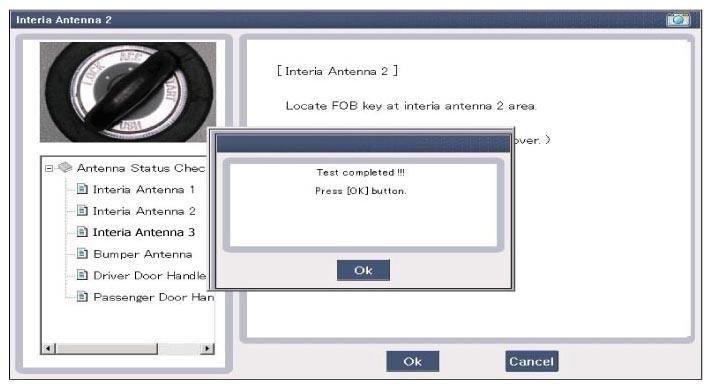

Fig 4: Screen Display - Interior 2 Antenna (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
If the SMART KEY runs normal, the related antenna, smart key (Transmission, Reception) and exterior receiver are normal.
Antenna Status
1. INTERIOR Antenna 1
2. INTERIOR Antenna 2
3. INTERIOR Antenna 3
4. BUMPER/Trunk Antenna
5. DRV_DR Antenna
6. AST_DR Antenna
