Home >> Hyundai >> 2016 >> Santa Fe Limited, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Drive Belt Tensioner >> Components and Components Location >> Components

Components and Components Location: Components

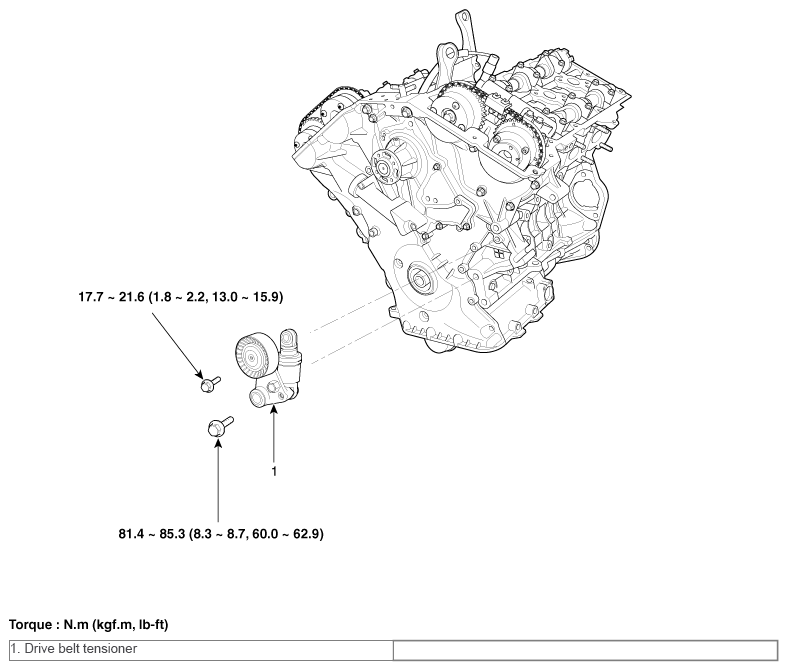

Fig 1: Drive Belt Tensioner Components With Torque Specifications

G10574331

Courtesy of HYUNDAI MOTOR AMERICA
