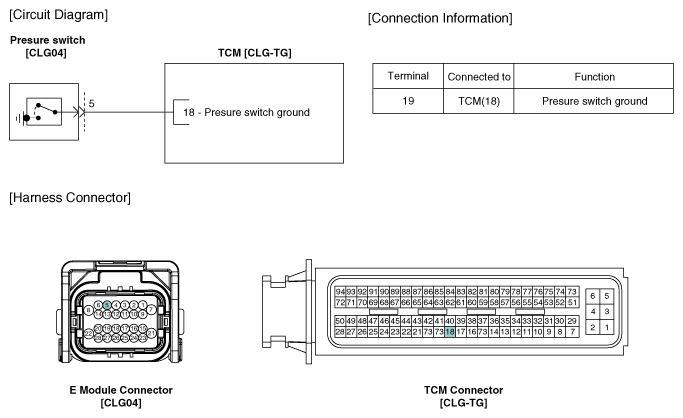

Home >> Hyundai >> 2016 >> Genesis Coupe 3.8, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Pressure Switch >> Schematic Diagrams >> Circuit Diagram
