Repair procedures: Removal

  1. Disconnect (-) terminal from the battery.
  2. Remove the under cover (A).
    Fig 1: Under Cover
    G10480482Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the stay (A).

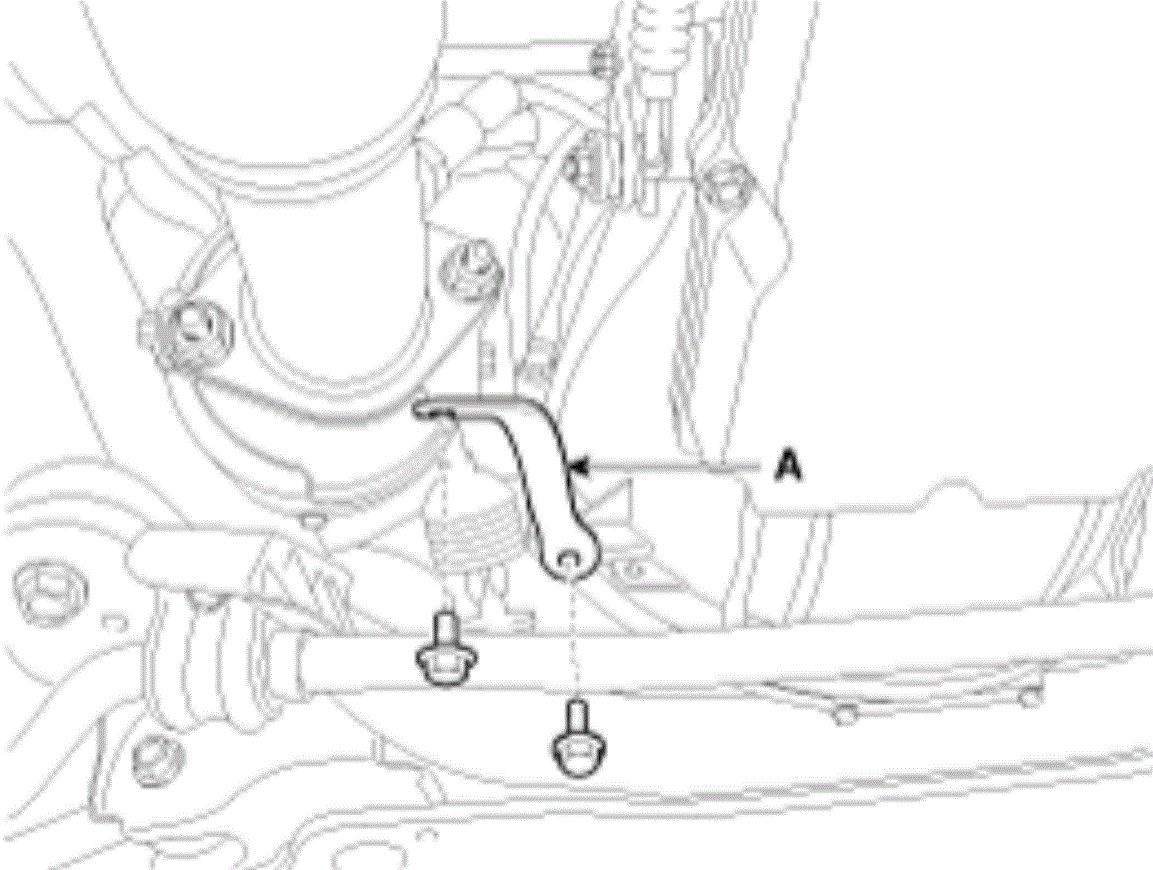

    Fig 2: Front Muffler Stay
    G00560891Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the front stabilizer bar (A).

    (Refer to "FRONT SUSPENSION SYSTEM " )

    Fig 3: Front Stabilizer Bar
    G10480483Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the ground wire (A) by removing the bolt.
    Fig 4: Ground Wire And Bolt
    G10480484Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the propeller shaft assembly.

    (Refer to "PROPELLER SHAFT " )

  7. Disconnect the inhibitor connector (B) and then remove the shift cable (A) by removing nut (C).

    Tightening torque:

    13.7 ~ 17.7 N.m (1.4 ~ 1.8 kgf.m, 10.1 ~ 13.0 lb-ft)

    Fig 5: Inhibitor Connector, Shift Cable And Nut
    G10480486Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the oxygen sensor (A) and then remove the wiring bracket (B, C).

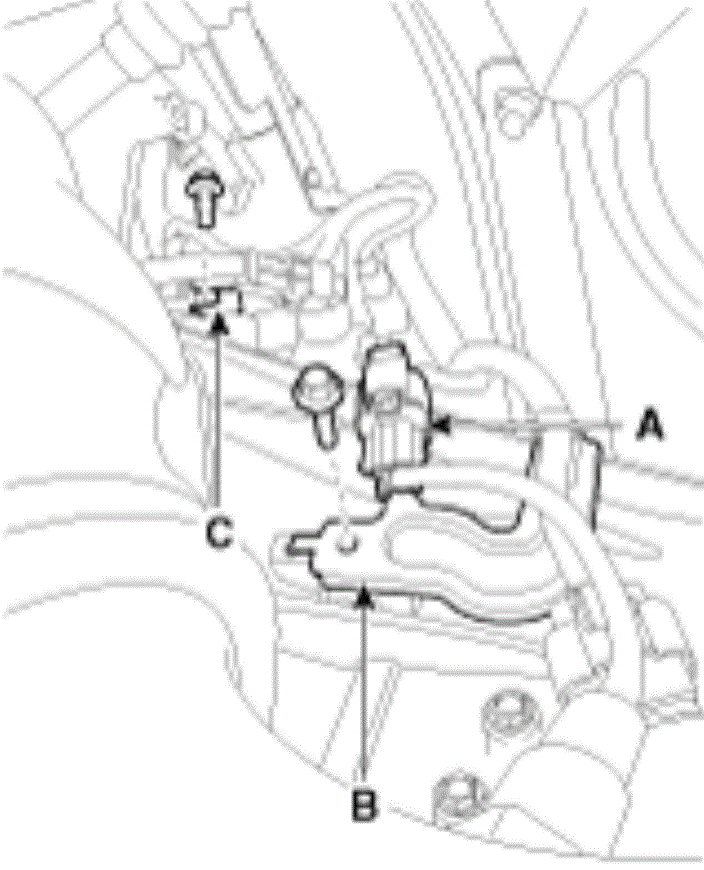

    Fig 6: Oxygen Sensor And Wiring Bracket
    G00560892Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the CKP sensor (A).
    Fig 7: CKP Sensor
    G00560893Courtesy of HYUNDAI MOTOR AMERICA
  10. Disconnect the solenoid valve connector (A).
    Fig 8: Solenoid Valve Connector
    G10480488Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the oxygen sensor (A).
    Fig 9: Oxygen Sensor

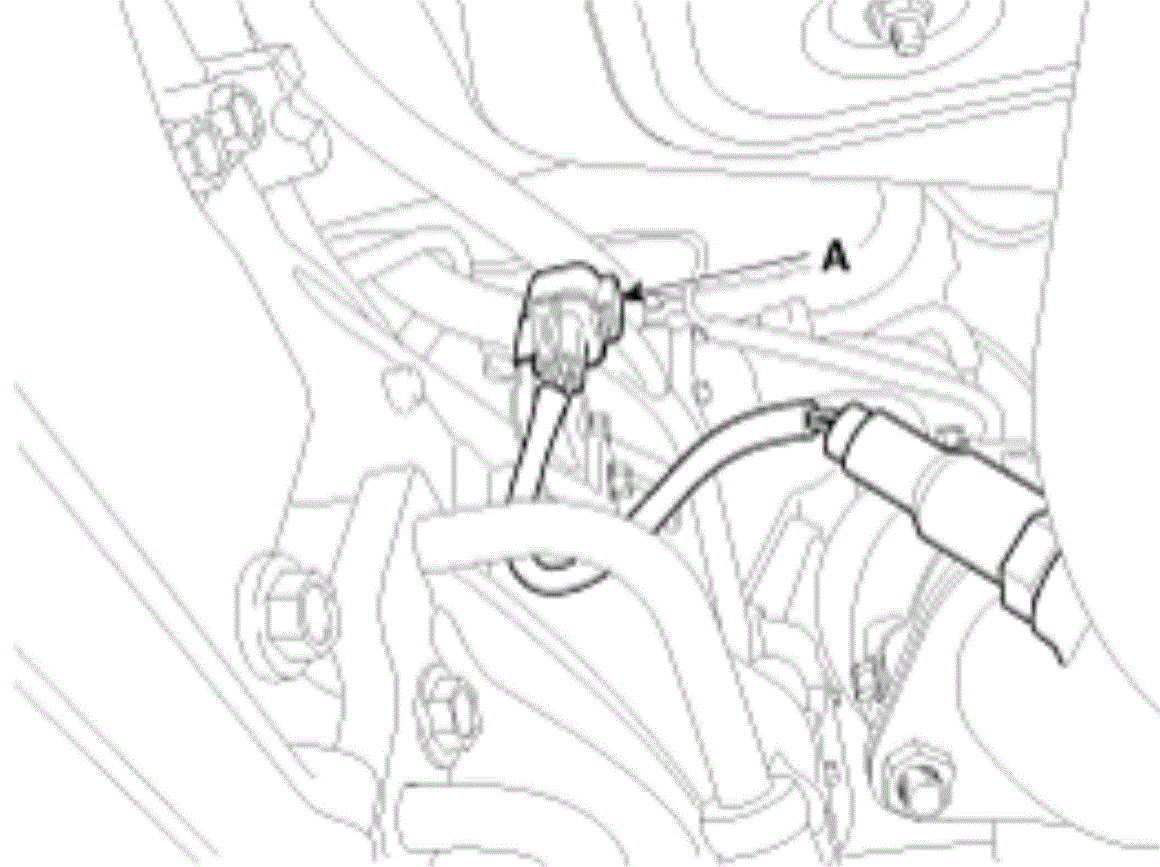

    G00560894Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the oxygen sensor (A) from the bracket (B) and then remove the bracket (C).

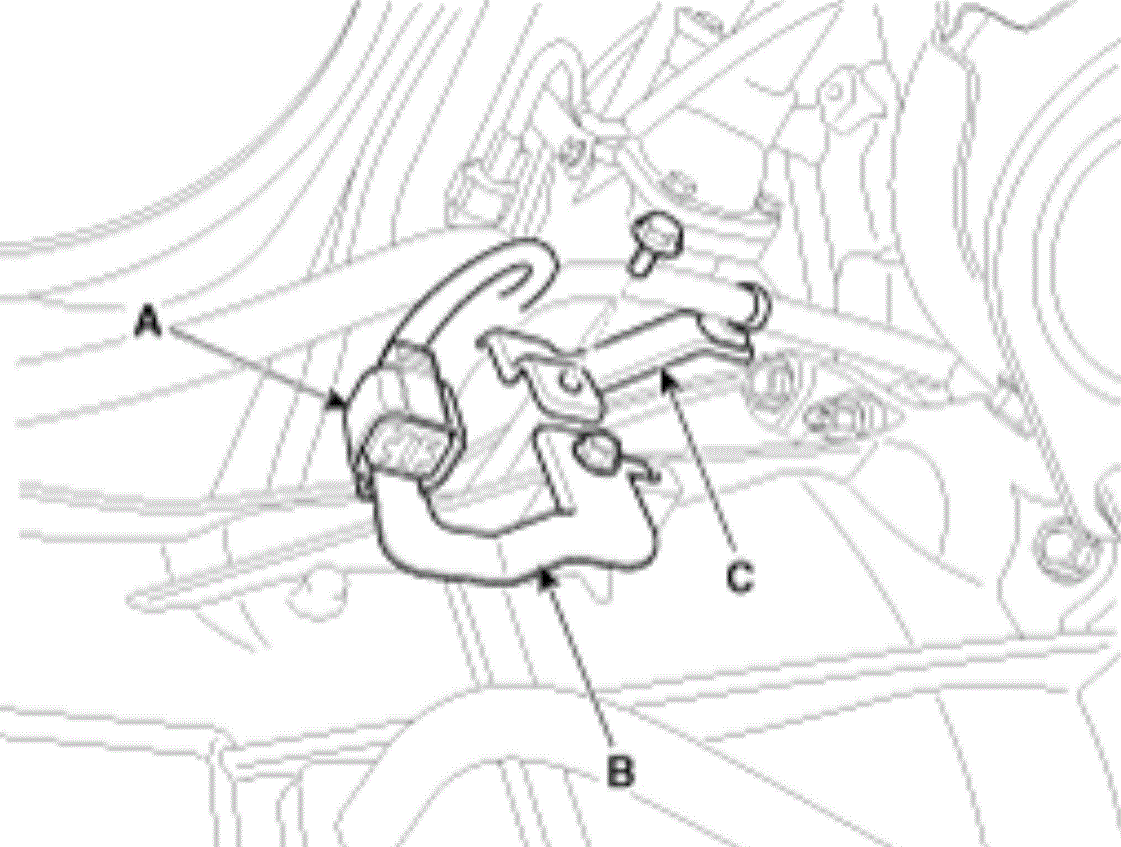

    Fig 10: Oxygen Sensor And Brackets
    G00560895Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the oil cooler tubes (A).
    Fig 11: Oil Cooler Tubes
    G10480489Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the dust cover (A).

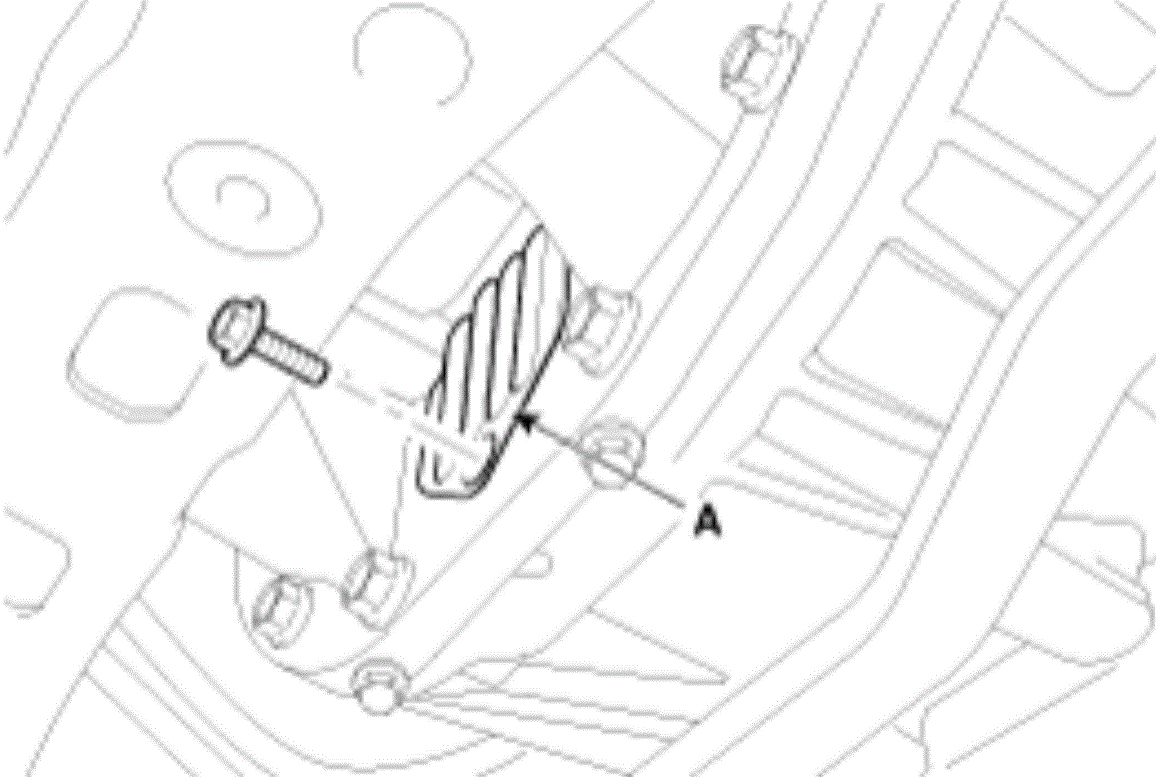

    Fig 12: Dust Cover
    G00560896Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the torque converter mounting bolts (A-6ea) by rotating the crank shaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

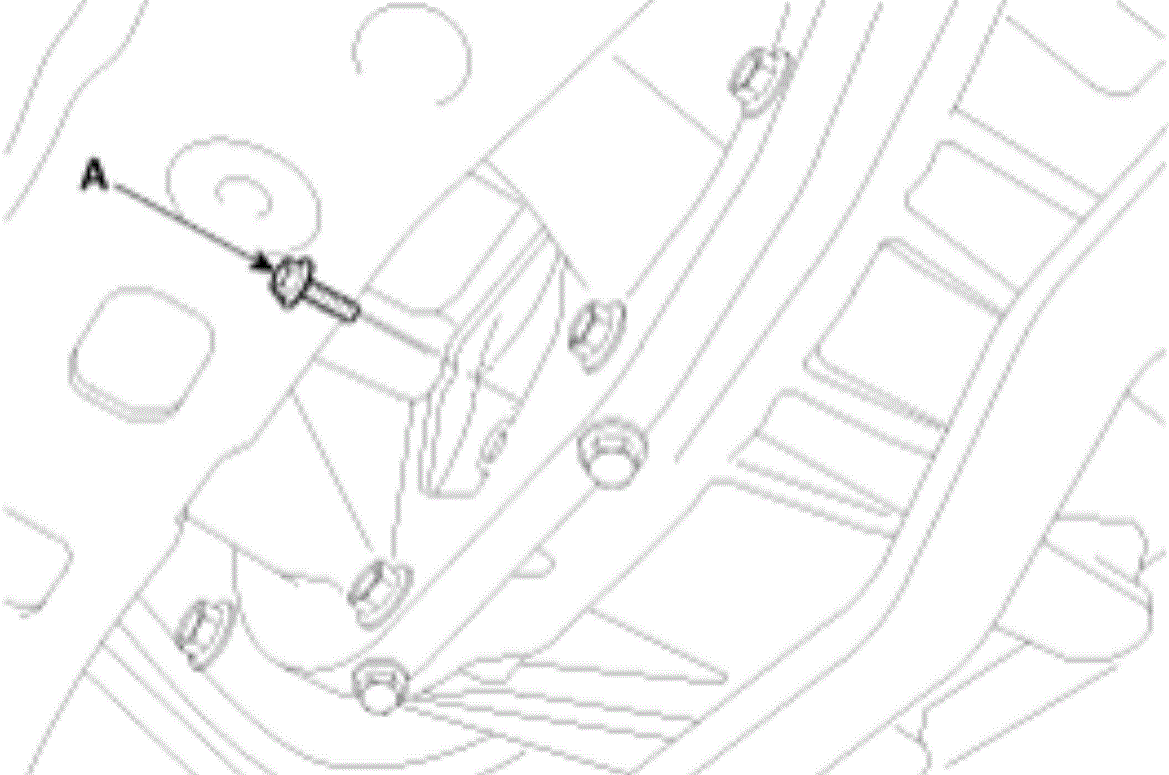

    Fig 13: Torque Converter Mounting Bolts
    G00560897Courtesy of HYUNDAI MOTOR AMERICA
  16. Using a jack support the transmission assembly.
  17. Remove the mounting bolts (A-4ea) lower in the engine side.

    Tightening torque:

    42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

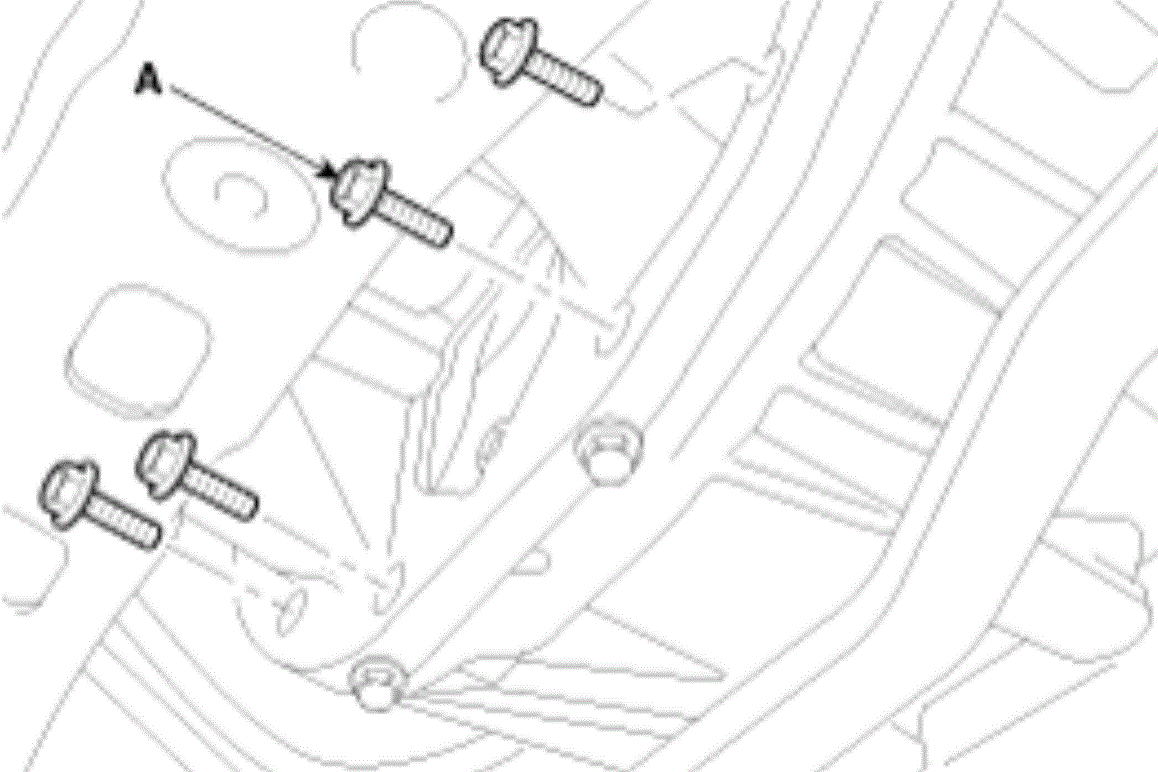

    Fig 14: Mounting Bolts Lower In Engine Side
    G00560898Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the cross member (A) by removing bolts.

    Tightening torque:

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

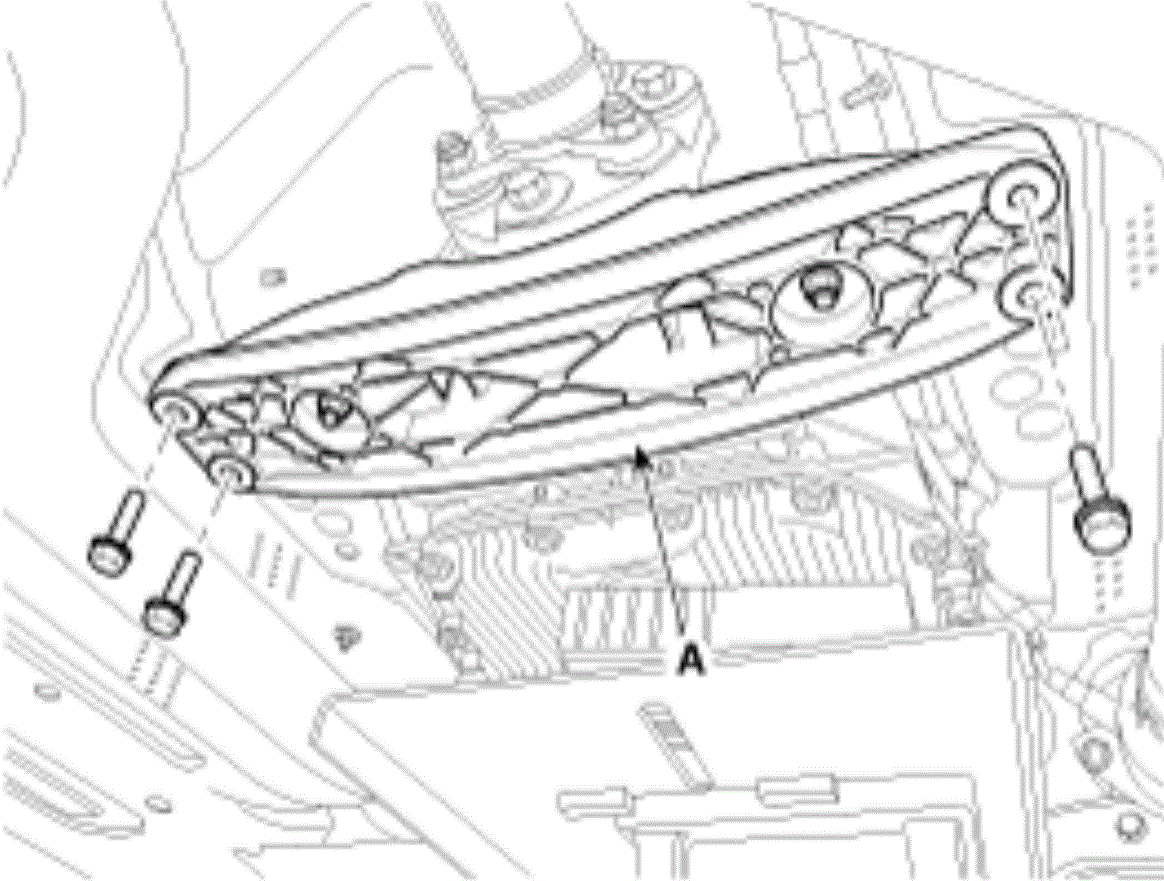

    Fig 15: Cross Member And Bolts
    G00560899Courtesy of HYUNDAI MOTOR AMERICA
  19. Remove the starter motor mounting bolt (A) and nut (B).
    NOTE: Before removing one mounting bolt on the transmission side and the other bolt for the starter motor, remove the cross member and lower the transmission assembly.

    Tightening torque:

    1. 50 ~ 65 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
    2. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

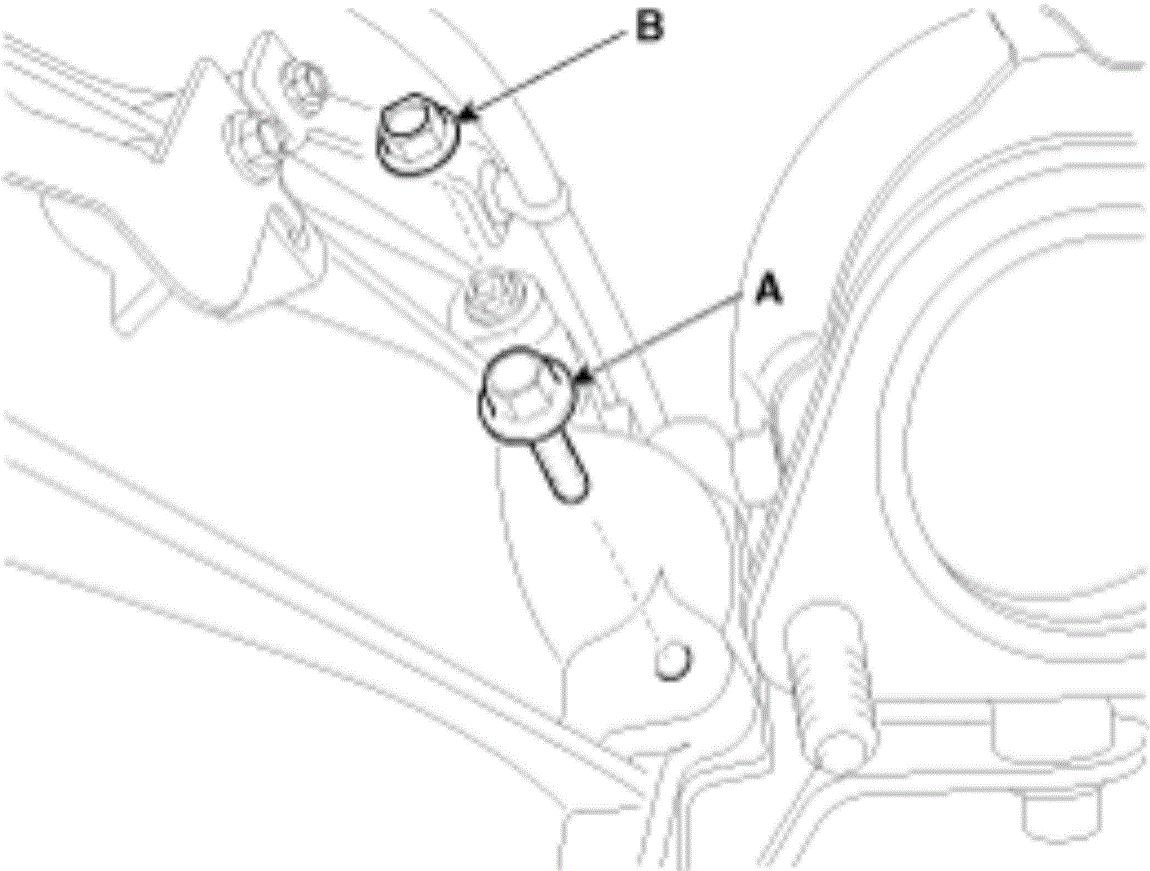

    Fig 16: Starter Motor Mounting Bolt And Nut
    G00560900Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the mounting bolts (A-3 ea, B-1ea) on the transmission side.

    Tightening torque:

    1. 65 ~ 85 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
    2. 35 ~ 47 N.m (3.5 ~ 4.7 kgf.m, 25.3 ~ 34.0 lb-ft)

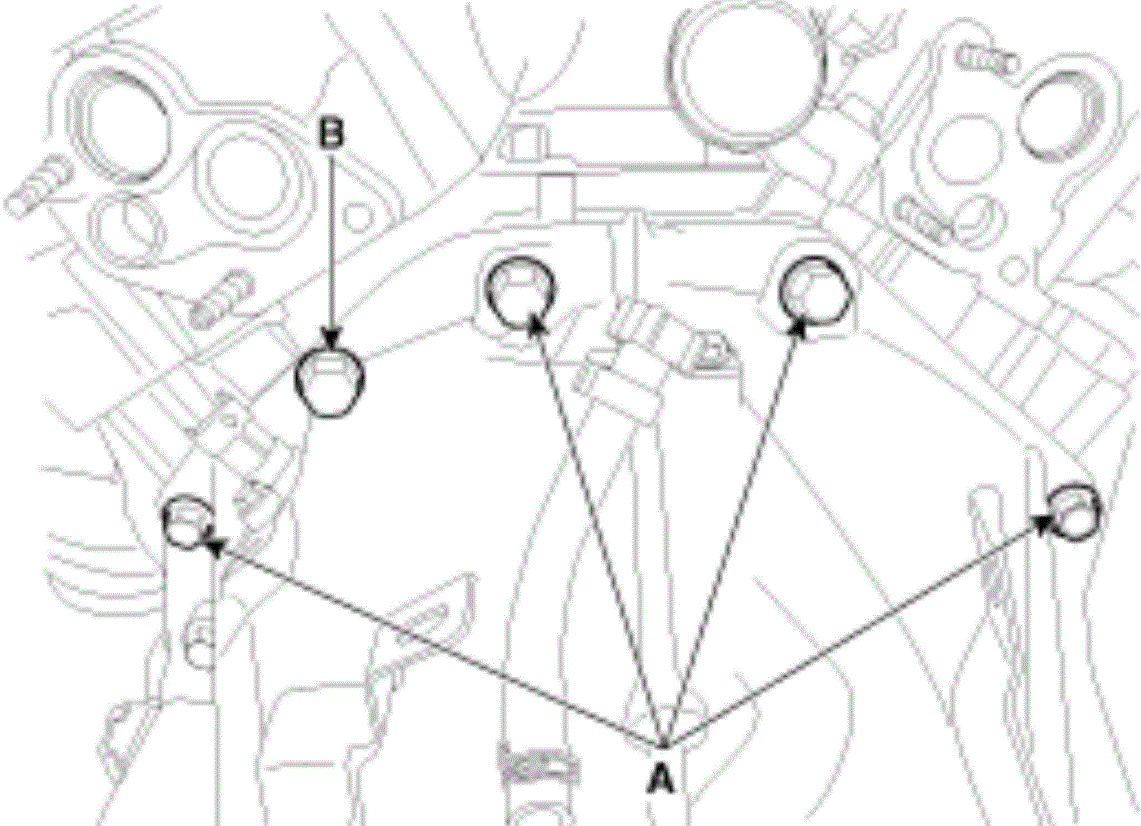

    Fig 17: Removing Mounting Bolts On Transmission Side
    G00560901Courtesy of HYUNDAI MOTOR AMERICA
  21. Remove the transmission assembly by lowering the supporting jack.
    CAUTION: Be careful not to damage tubes, hoses or wire.
