Component Inspection

Ignition OFF & Engine OFF.
Disconnect "ATM Solenoid Valve Connector".
Connect GDS to Data Link Connector (DLC) and select Simulation mode.
Input specification frequency to signal of Output speed sensor by simulation mode.

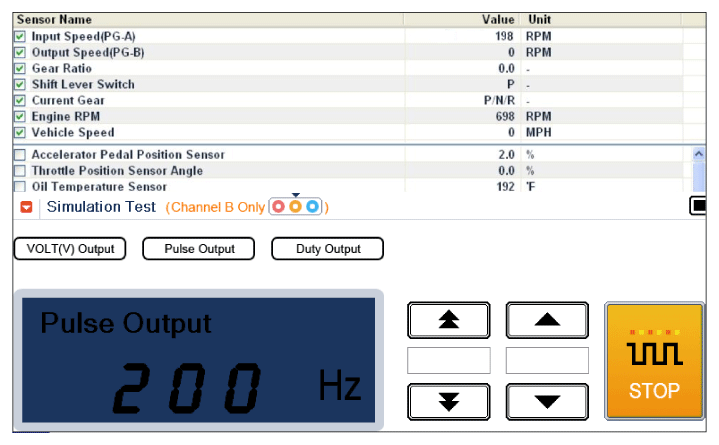

Fig 1: Screen Display - Output 200Hz
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Output 300Hz
Courtesy of HYUNDAI MOTOR AMERICA

* The values are subject to change according to vehicle model or conditions.
Is measured Output speed sensor value changed by Output frequency?
YES
- Substitute with a known-good Input speed sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
