Signal Waveform & Data

WARNING: This page is about a different car, the 2016 Hyundai Genesis and 2015 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

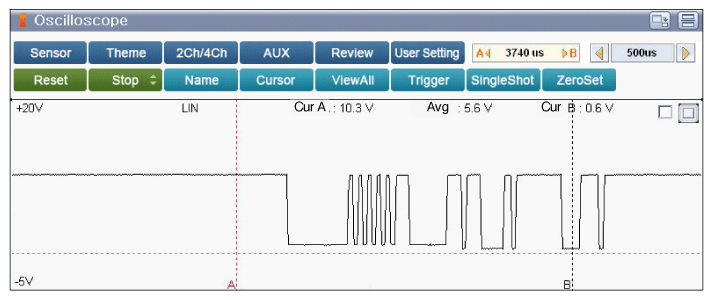

Fig 1: Screen Display - BCM And Rain Sensor LIN Signal Waveform
G10456264Courtesy of HYUNDAI MOTOR AMERICA
