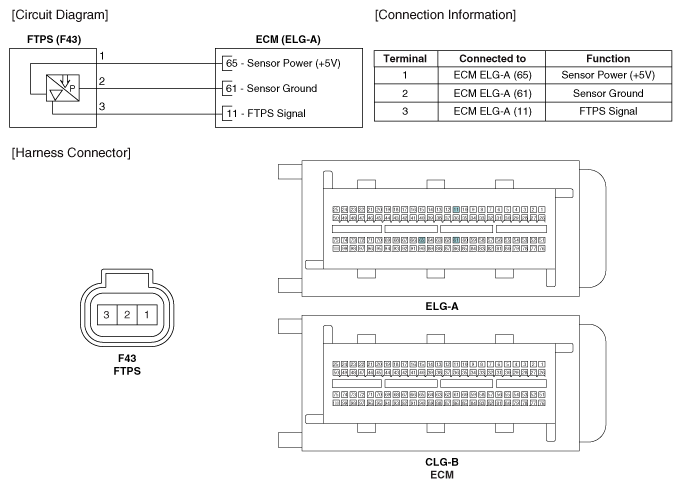

Home >> Hyundai >> 2016 >> Genesis Coupe 3.8, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Fuel Tank Pressure Sensor (FTPS) >> Schematic Diagrams >> Circuit Diagram
