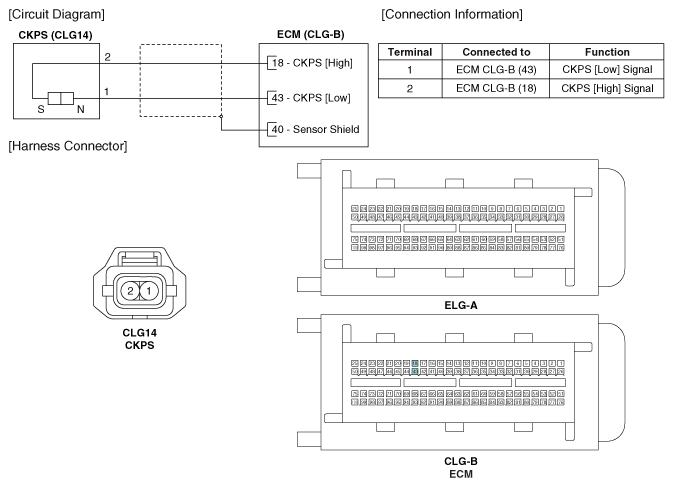

Home >> Hyundai >> 2016 >> Genesis Coupe 3.8, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Crankshaft Position Sensor - CKPS >> Schematic Diagrams >> Circuit Diagram
