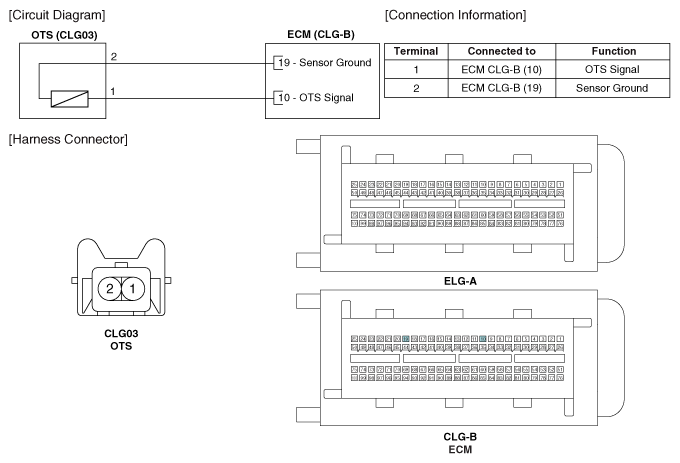

Home >> Hyundai >> 2016 >> Genesis Coupe 3.8 R-Spec >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> CVVT Oil Temperature Sensor - OTS >> Schematic Diagrams >> Circuit Diagram
