Component Location

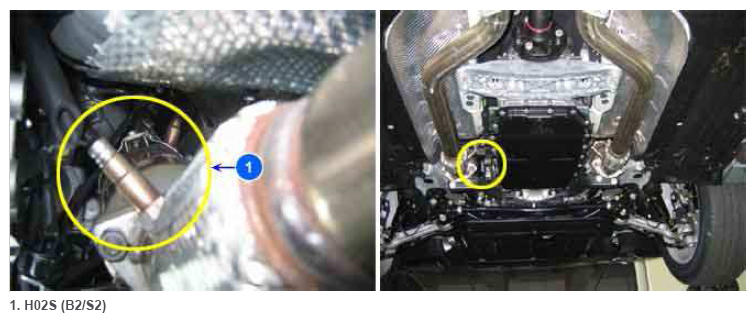

Fig 1: H02S (B2/S2) Component Location
G10470471Courtesy of HYUNDAI MOTOR AMERICA
