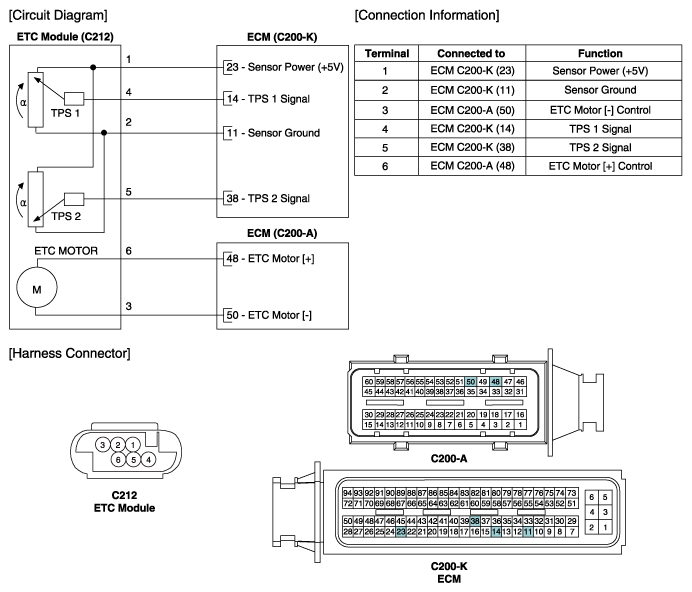

Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Electronic Throttle Control (ETC) System >> Schematic Diagrams >> Circuit Diagram
