Components and Components Location: Component

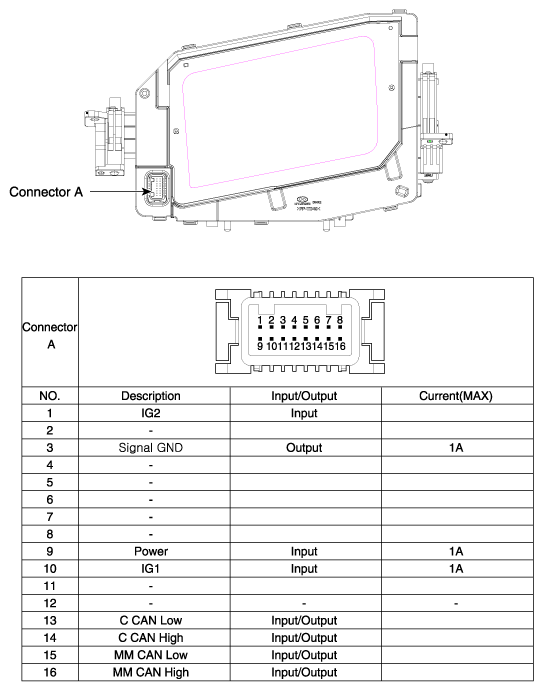

Fig 1: Head Up Display Unit Connector

G10454812

Courtesy of HYUNDAI MOTOR AMERICA
