Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Premium Audio/Video/Navigation System >> Front LCD monitor >> Components and Components Location >> Components

Components and Components Location: Components

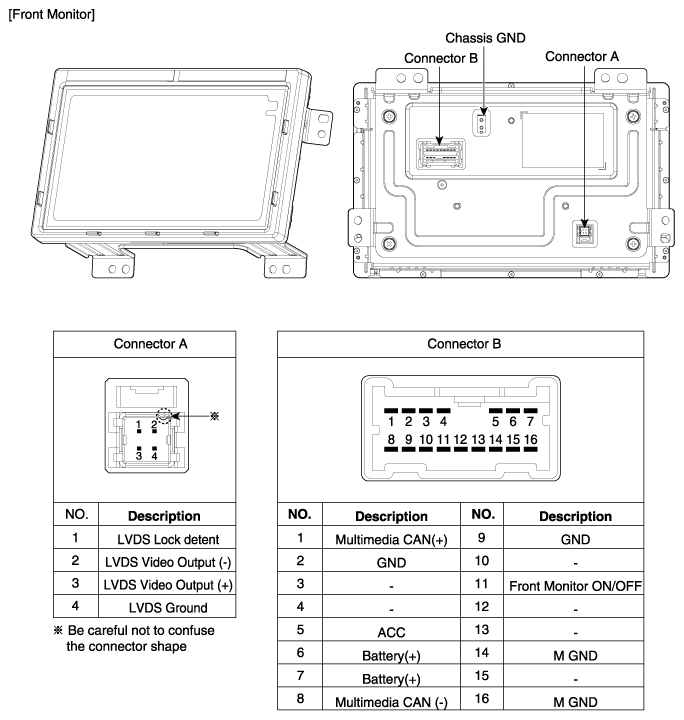

Fig 1: Front LCD Monitor Terminals

G10454096

Courtesy of HYUNDAI MOTOR AMERICA
