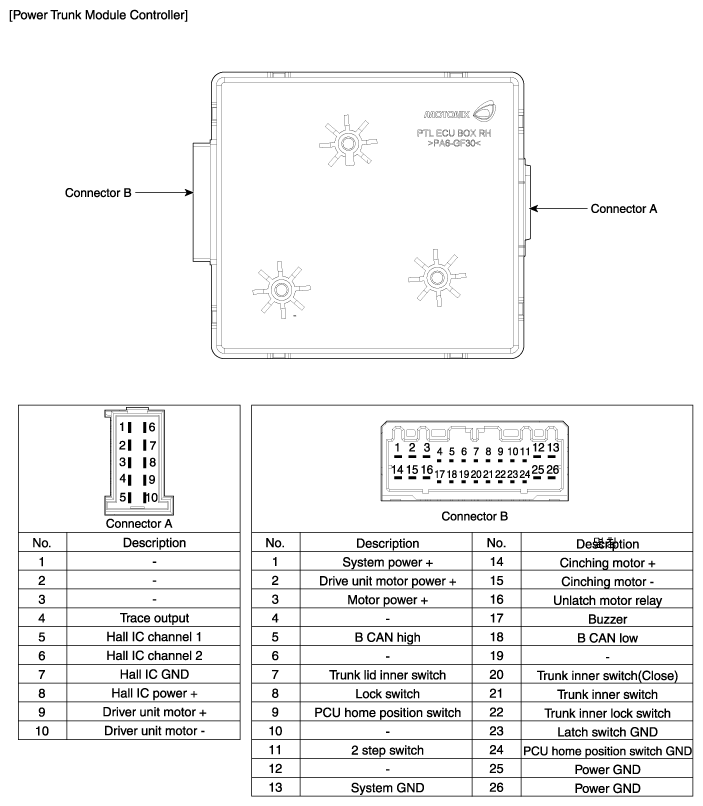

Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Power Trunk Module >> Power Trunk Module Drive Unit >> Schematic Diagrams >> Circuit Diagram
