Projected Dimensions: [2WD]

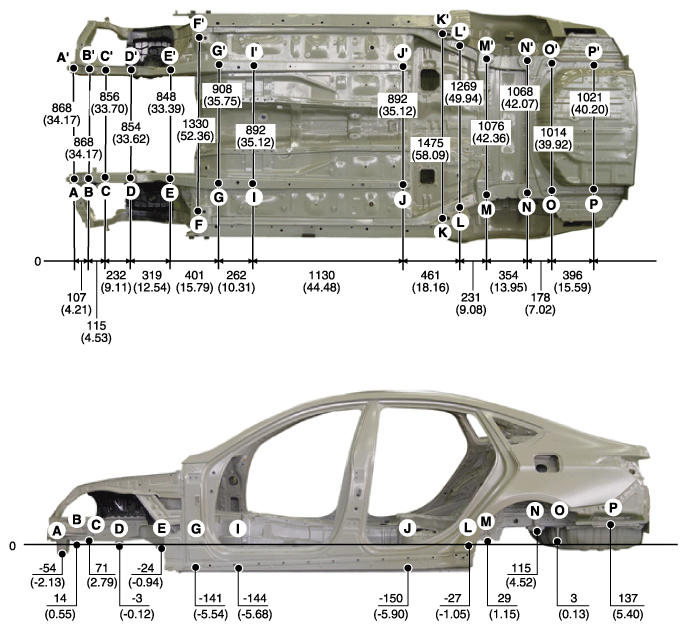

Fig 1: Under Body Dimension (2WD)
G10453487Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
