Actual Measurement Dimensions: Notes

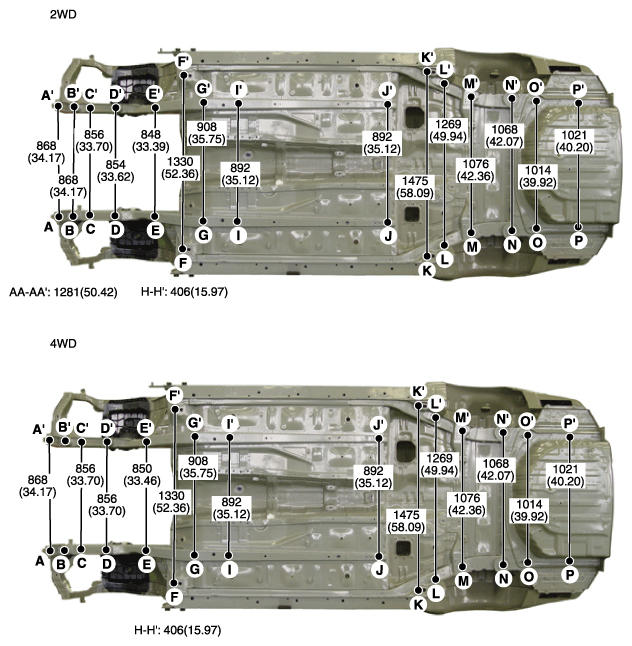

Fig 1: Under Body Dimension

G10453489

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
