Body Repair

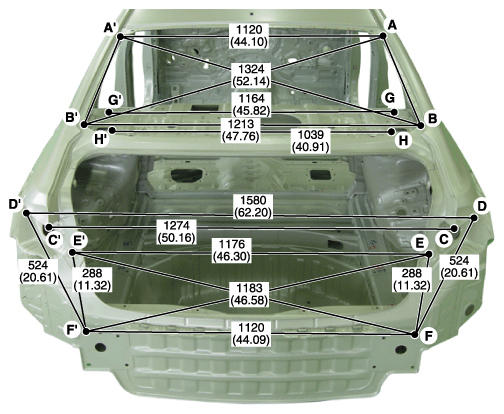

Fig 1: Rear Body Dimension

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]

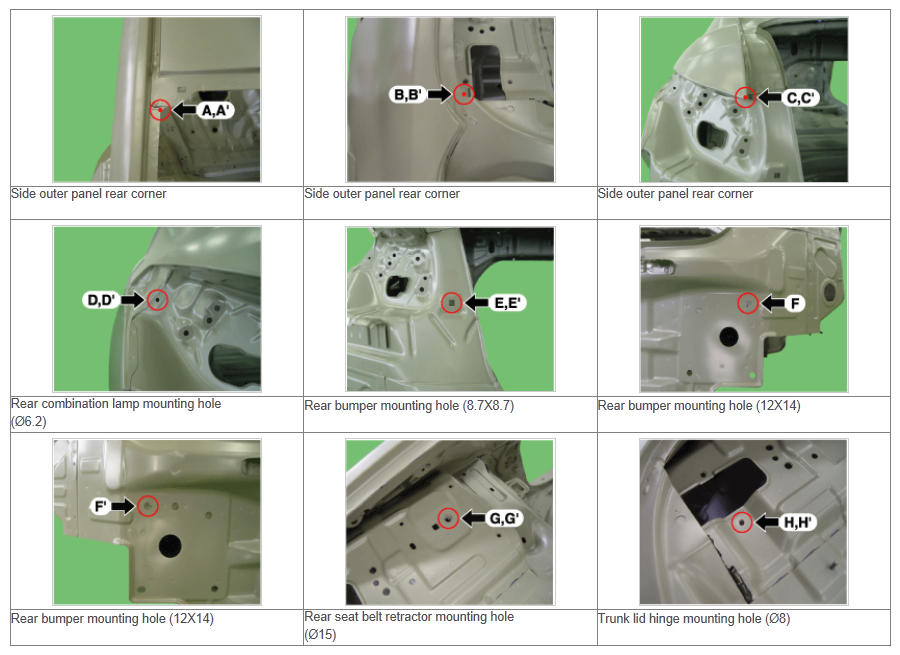

Fig 2: Rear Body Hole

Courtesy of HYUNDAI MOTOR AMERICA
