Interior E

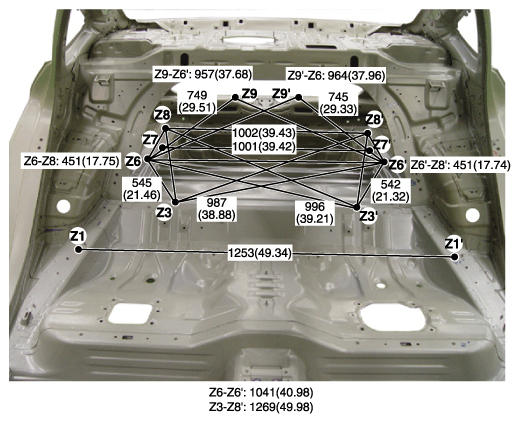

Fig 1: Interior Body Dimension E

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]

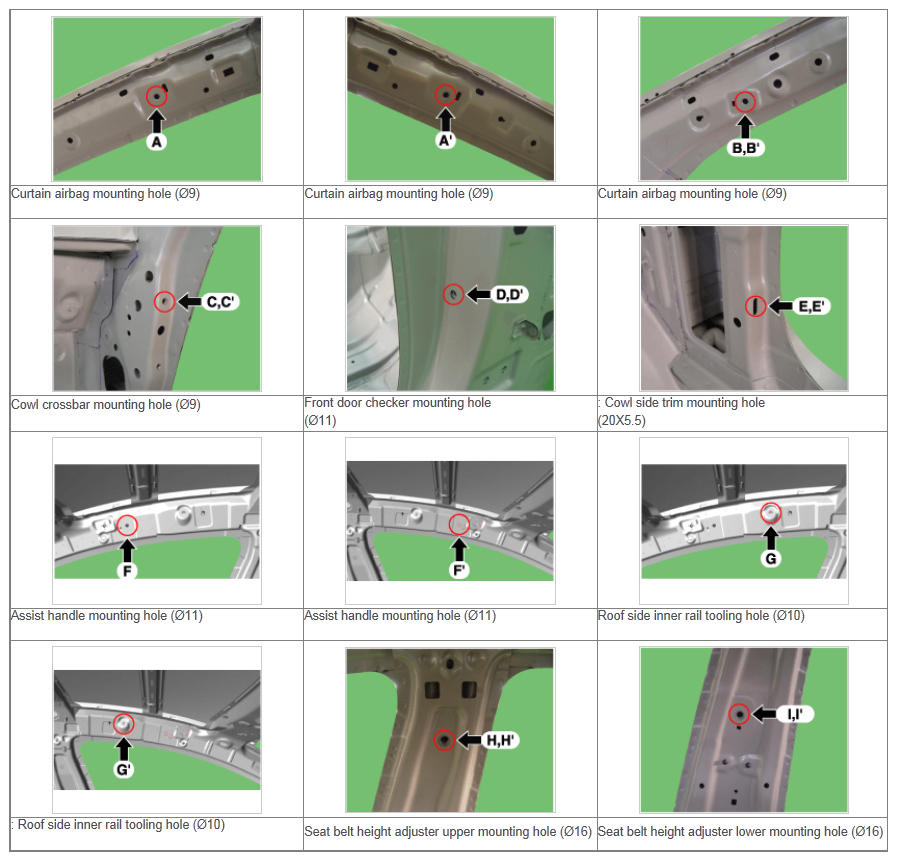

Fig 2: Interior Body Holes (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

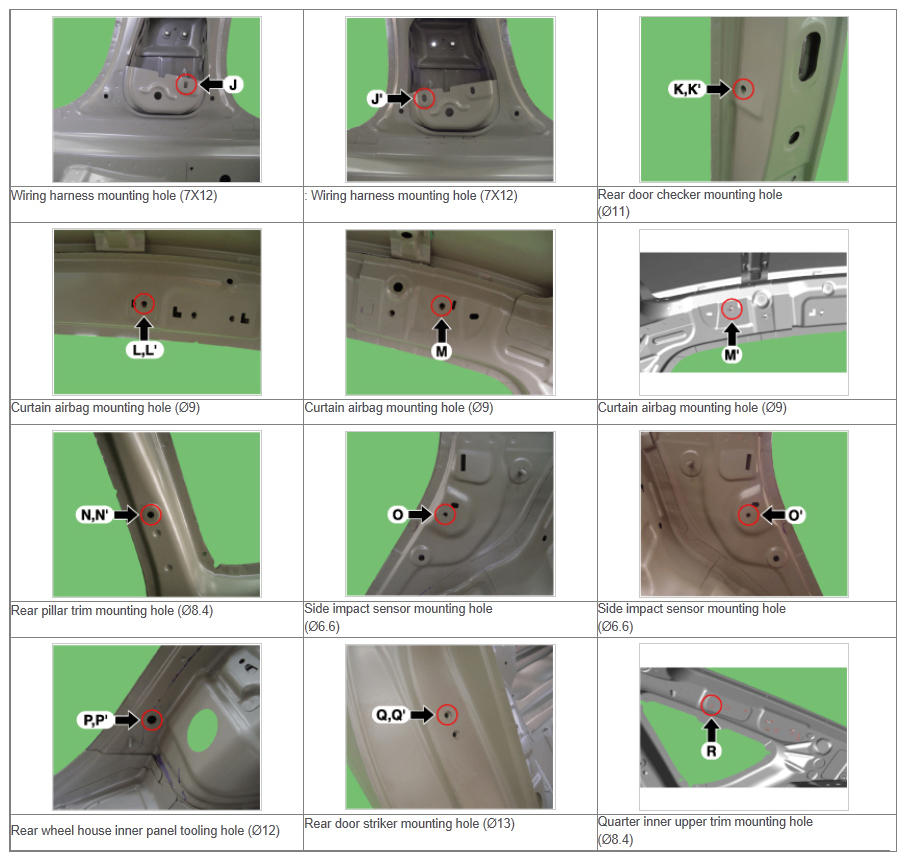

Fig 3: Interior Body Holes (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

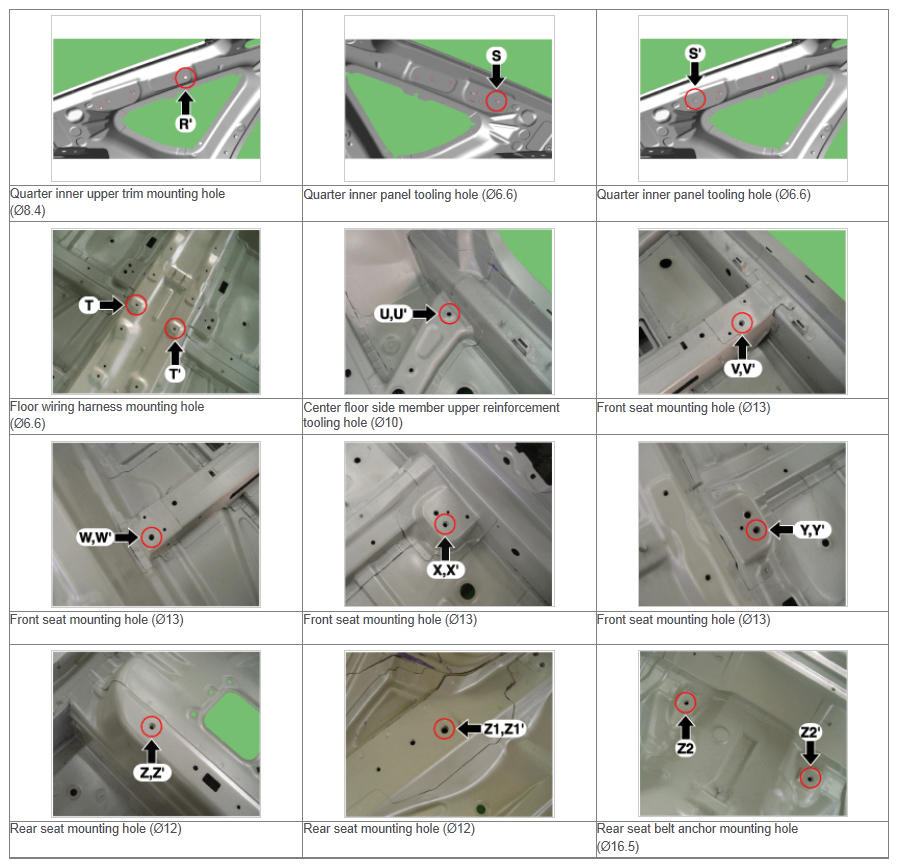

Fig 4: Interior Body Holes (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

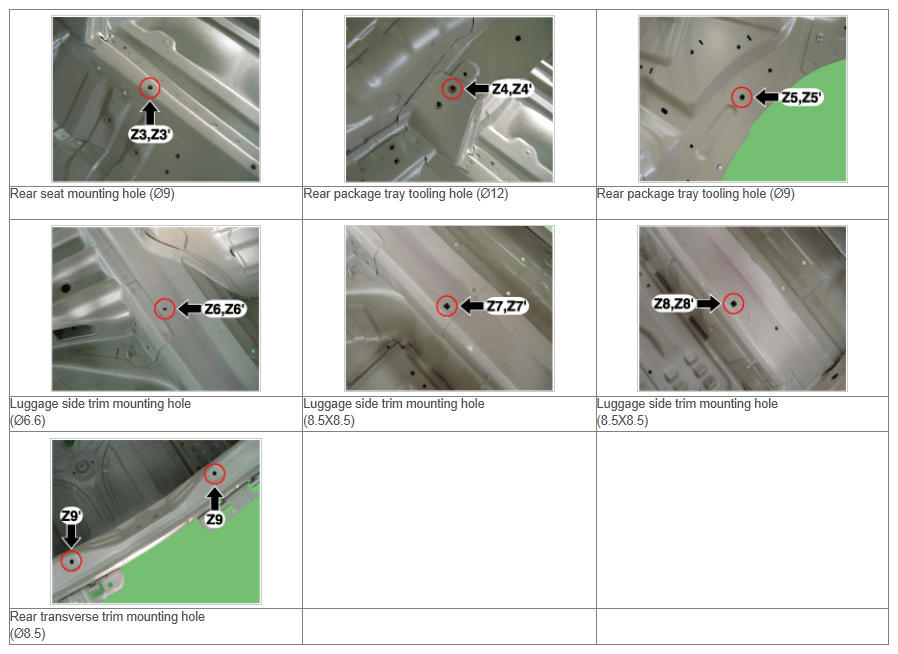

Fig 5: Interior Body Hole (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
