Interior C

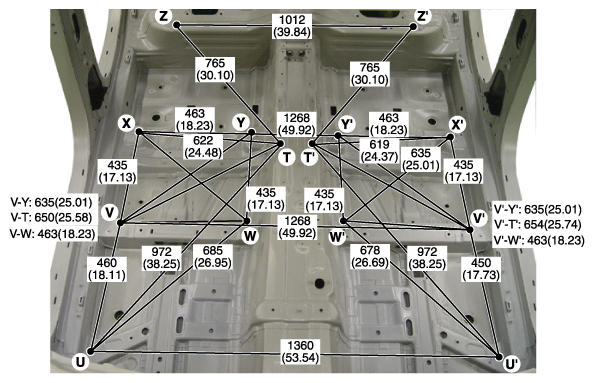

Fig 1: Interior Body Dimension C
G10453478Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
