Front Body D

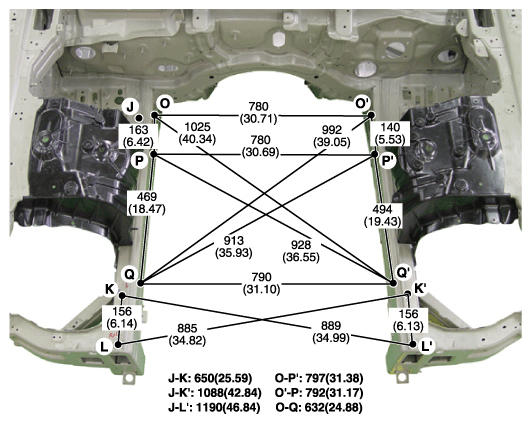

Fig 1: Front Body Dimension D

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]

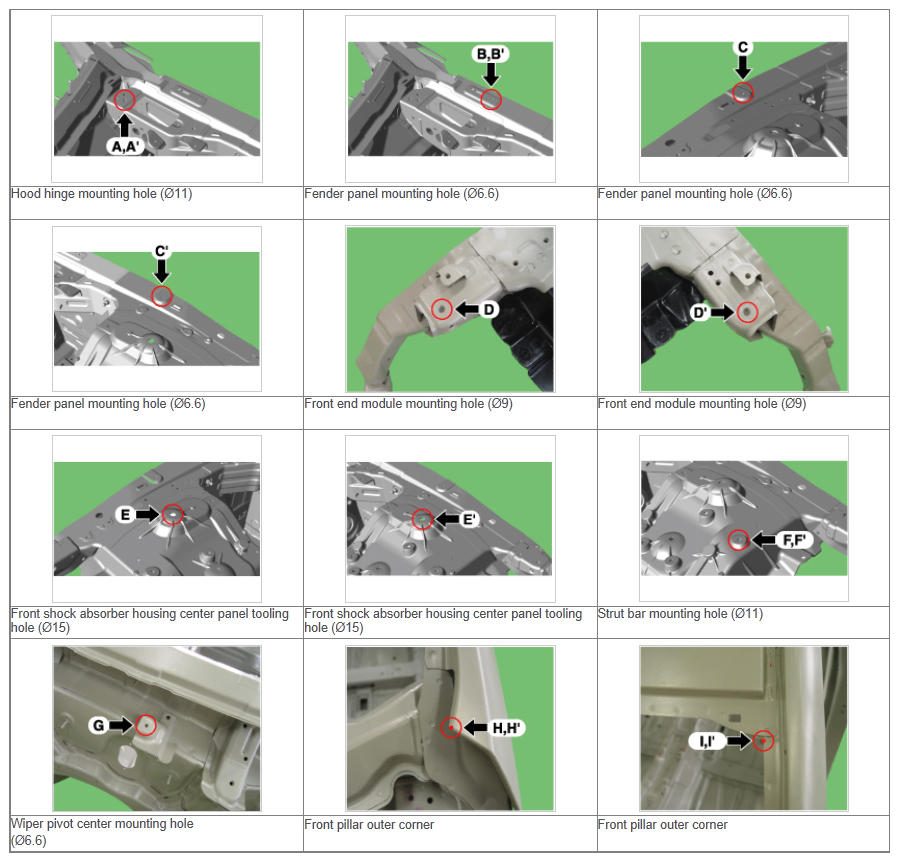

Fig 2: Front Body Holes (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

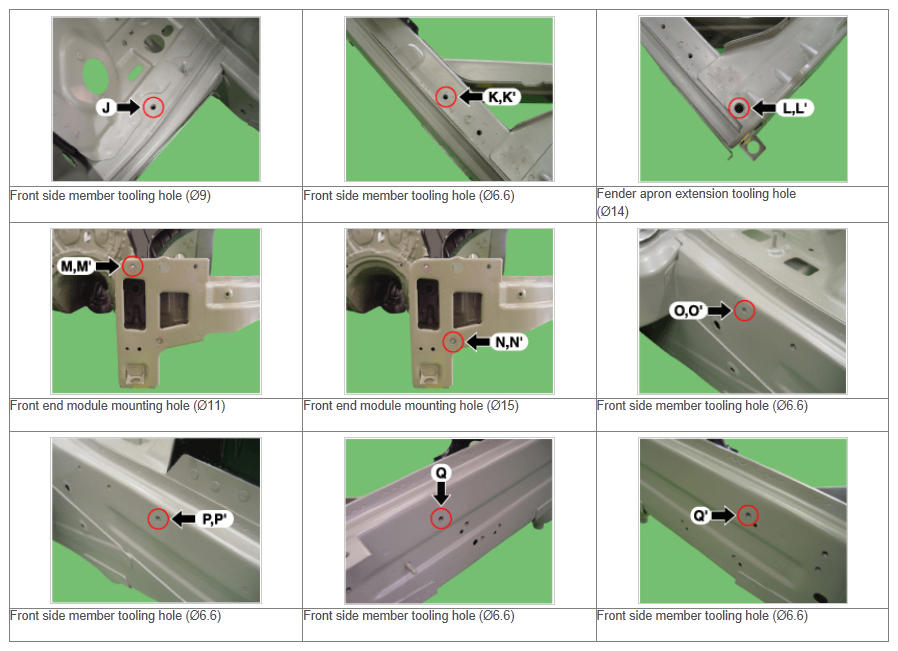

Fig 3: Front Body Holes (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
