Front Body C

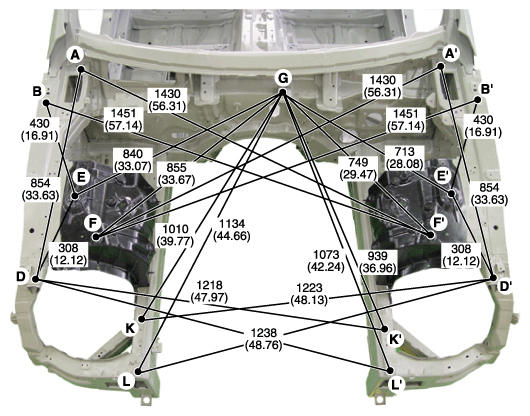

Fig 1: Front Body Dimension C
G10453468Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
