Front Body B

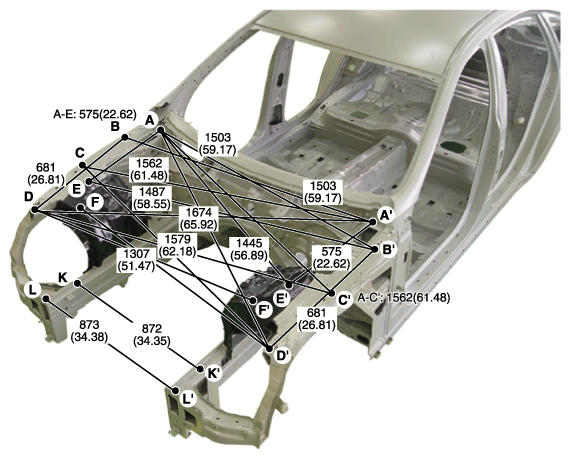

Fig 1: Identifying Front Body Dimension B
G10453467Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
