Front Body A

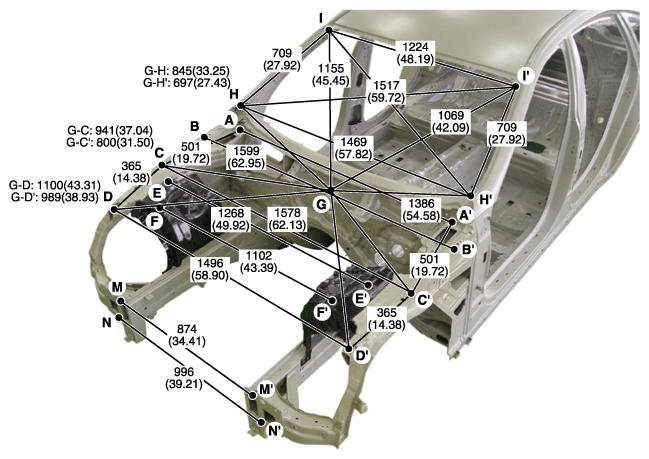

Fig 1: Front Body Dimension A

G10453466

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
