Front Cross Member

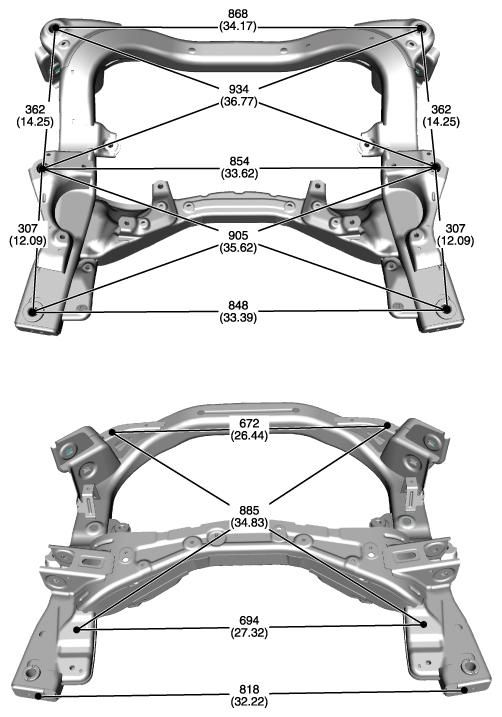

Fig 1: Front Cross Member Dimension (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]

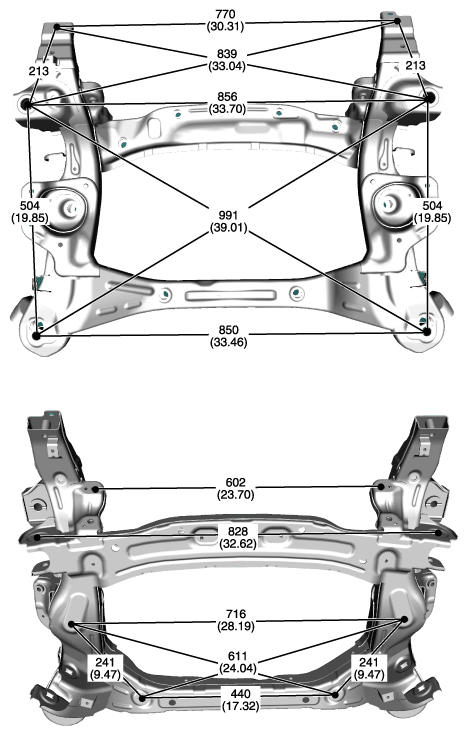

Fig 2: Front Cross Member Dimension (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this illustration are actual-measurement dimensions. [Unit: mm (inch)]
