Genesis 3.8, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Audio/Video/Navigation System
>>
Description and Operation
>>
Description
>>
System Block Diagram
System Block Diagram

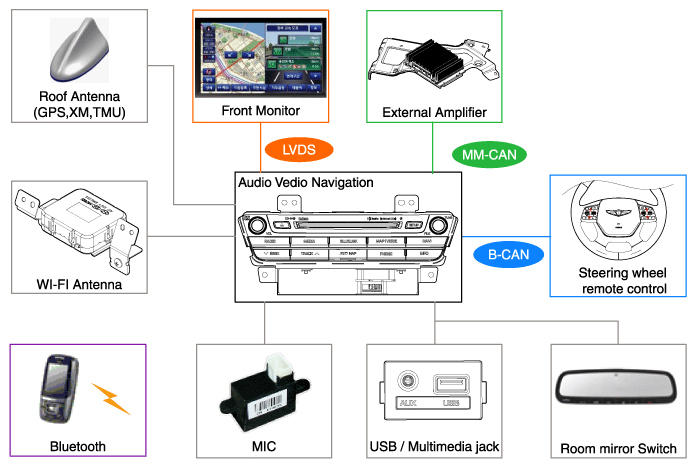

Fig 1: AVN System Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
AVM: Around View Monitoring System
LVDS: Low Voltage Differential Signaling
B-CAN: Body Controller Area Network
MM-CAN: Multi-Media Controller Area Network
Courtesy of HYUNDAI MOTOR AMERICA
