Connector Pin Information

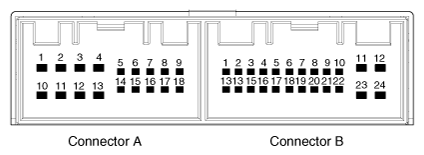

Fig 1: AVN Head Unit Terminals

G10454091

Courtesy of HYUNDAI MOTOR AMERICA

No.	Connector A	Connector B
1	-	MM CAN HIGH
2	Rear seat LCD monitor ON/OFF	-
3	-	High-speed CAN (+)
4	-	-
5	-	AUX video shield GND
6	-	IGN 1 B (+)
7	i-BOX microphone (+)	AUX Video
8	Illumination (+)	AUX R
9	Reverse	-
10	i-BOX microphone shield GND	MIC (+)
11	-	ACC
12	-	B (+)
13	-	MM CAN low
14	Front seat LCD monitor ON/OFF	-
15	-	High-speed CAN (-)
16	i-BOX microphone (-)	Vehicle speed
17	Illumination (-)	Mic shield GND
18	Antenna B (+)	AUX audio shield GND
19		AUX video GND
20		AUX DETECT
21		AUX L
22		MIC (-)
23		M GND
24		M GND

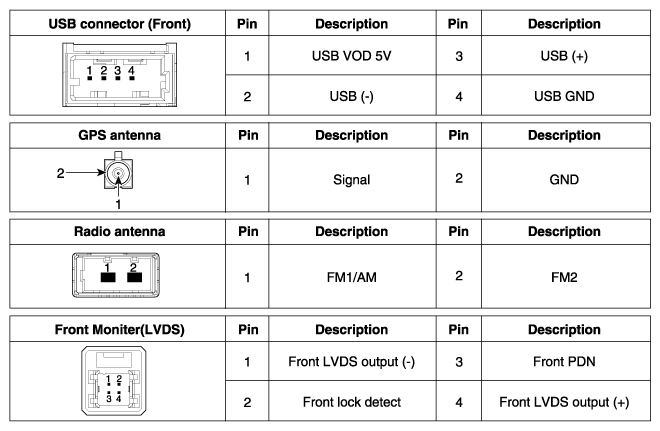

Fig 2: AVN Head Unit Connector Description Chart (1 Of 2)

G10454092

Courtesy of HYUNDAI MOTOR AMERICA

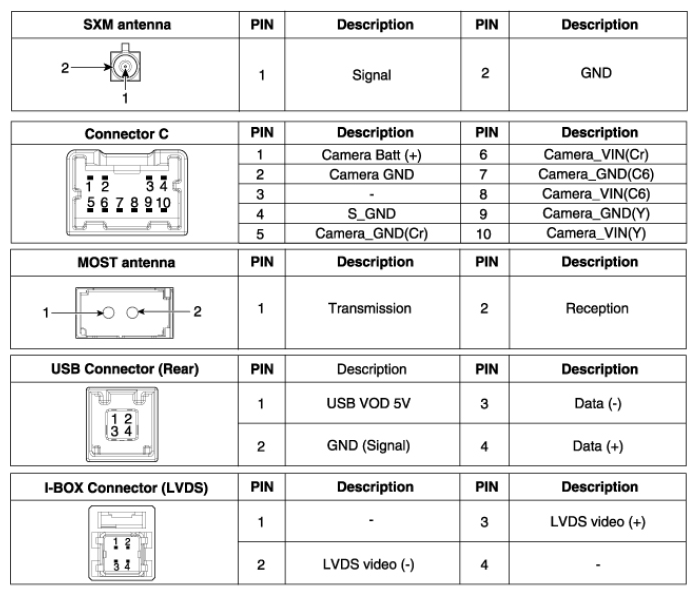

Fig 3: AVN Head Unit Connector Description Chart (2 Of 2)

G10454093

Courtesy of HYUNDAI MOTOR AMERICA
