Home >> Hyundai >> 2016 >> Equus Ultimate >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> Memory Power Seat Switch >> Components and Components Location >> Components

Components and Components Location: Components

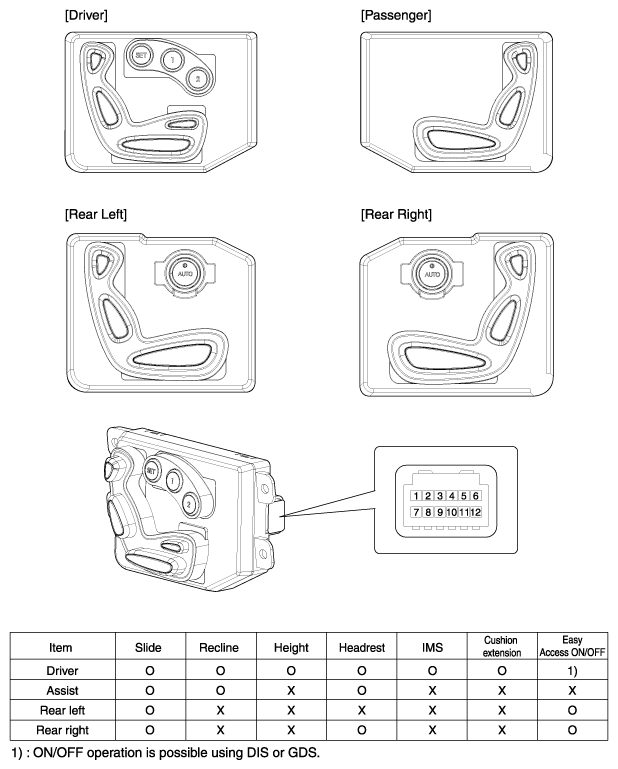

Fig 1: Memory Power Seat Switch Components And Connector Terminal Identification

G10387072

Courtesy of HYUNDAI MOTOR AMERICA
