Home >> Hyundai >> 2016 >> Equus Signature >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components and Components Location >> Components

Components and Components Location: Components

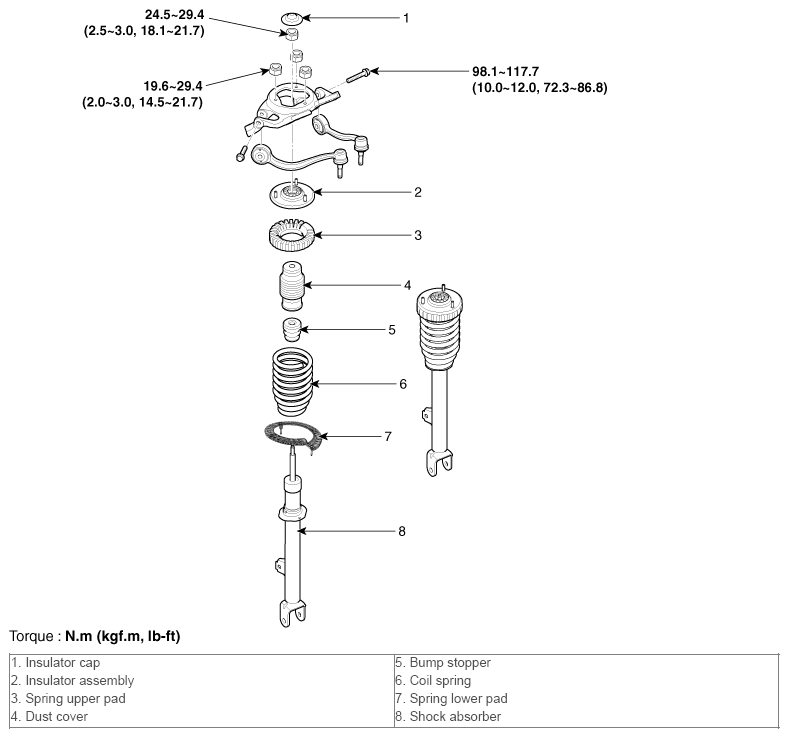

Fig 1: Front Strut Assembly Components With Torque Specifications

G10383068

Courtesy of HYUNDAI MOTOR AMERICA
