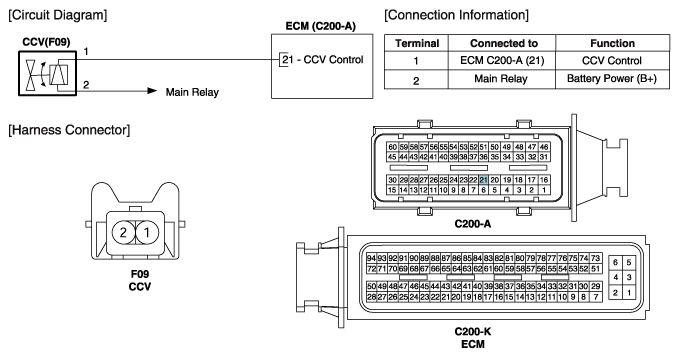

Home >> Hyundai >> 2016 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Canister Close Valve (CCV) >> Schematic Diagrams >> Circuit Diagram
