Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the head up display bezel (A).
    Fig 1: Head Up Display Bezel
    G10387647Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the instrument cluster.

    (Refer to "INSTRUMENT CLUSTER ")

    Fig 2: Instrument Cluster
    G10387648Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the head up display unit bracket (A) after loosening there mounting nuts.
    Fig 3: Head Up Display Unit Bracket Mounting Nuts
    G10387649Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the head up display unit (A).
Fig 4: Removing Head Up Display Unit (1 Of 3)
G10387650Courtesy of HYUNDAI MOTOR AMERICA

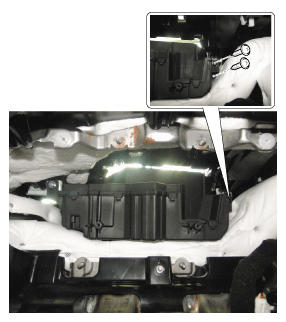

Fig 5: Removing Head Up Display Unit (2 Of 3)
G10387651Courtesy of HYUNDAI MOTOR AMERICA
Fig 6: Removing Head Up Display Unit (3 Of 3)
G10387652Courtesy of HYUNDAI MOTOR AMERICA
