Components and Components Locations: Component

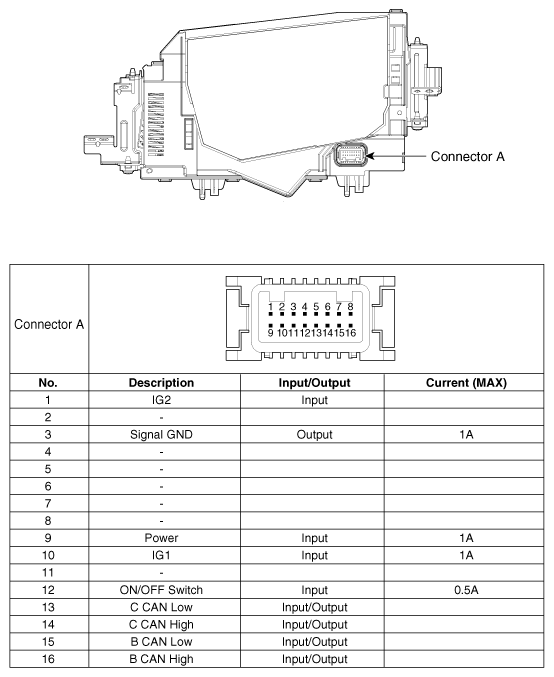

Fig 1: Head Up Display Unit And Connector Terminal Identification

G10387645

Courtesy of HYUNDAI MOTOR AMERICA
